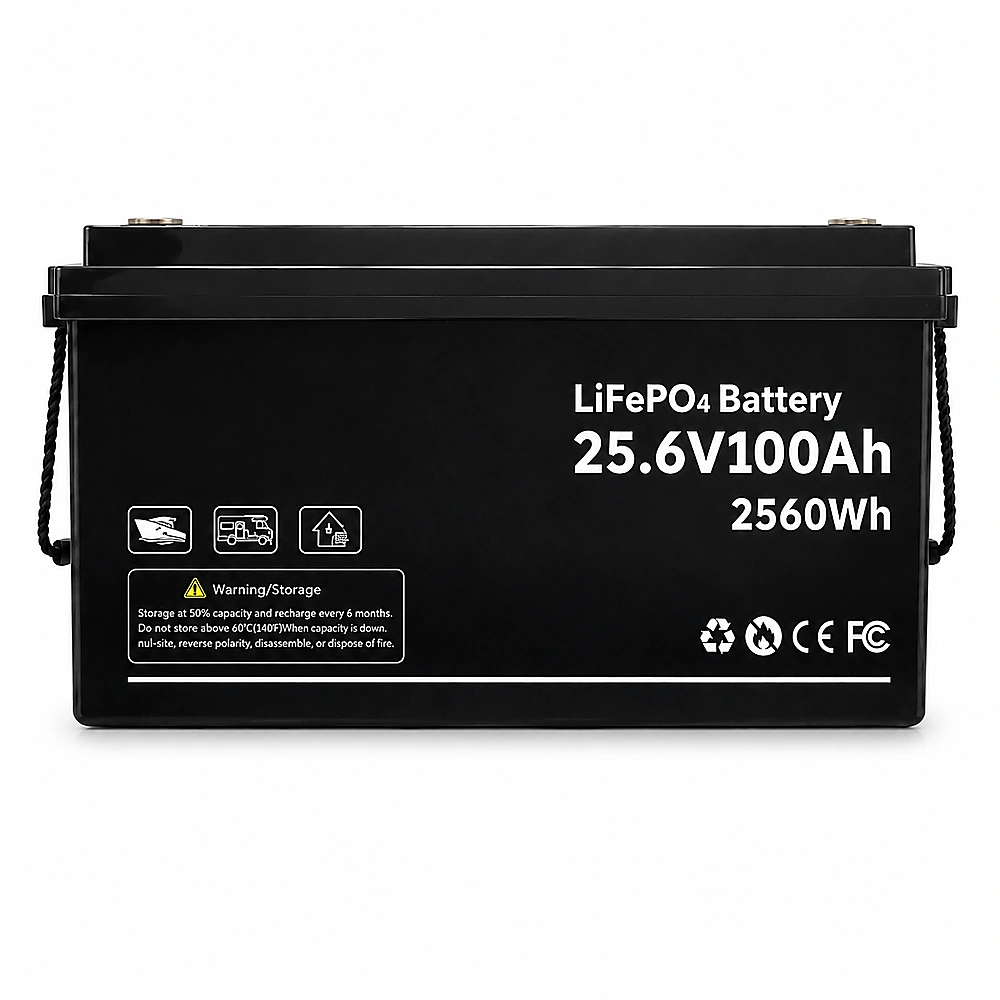

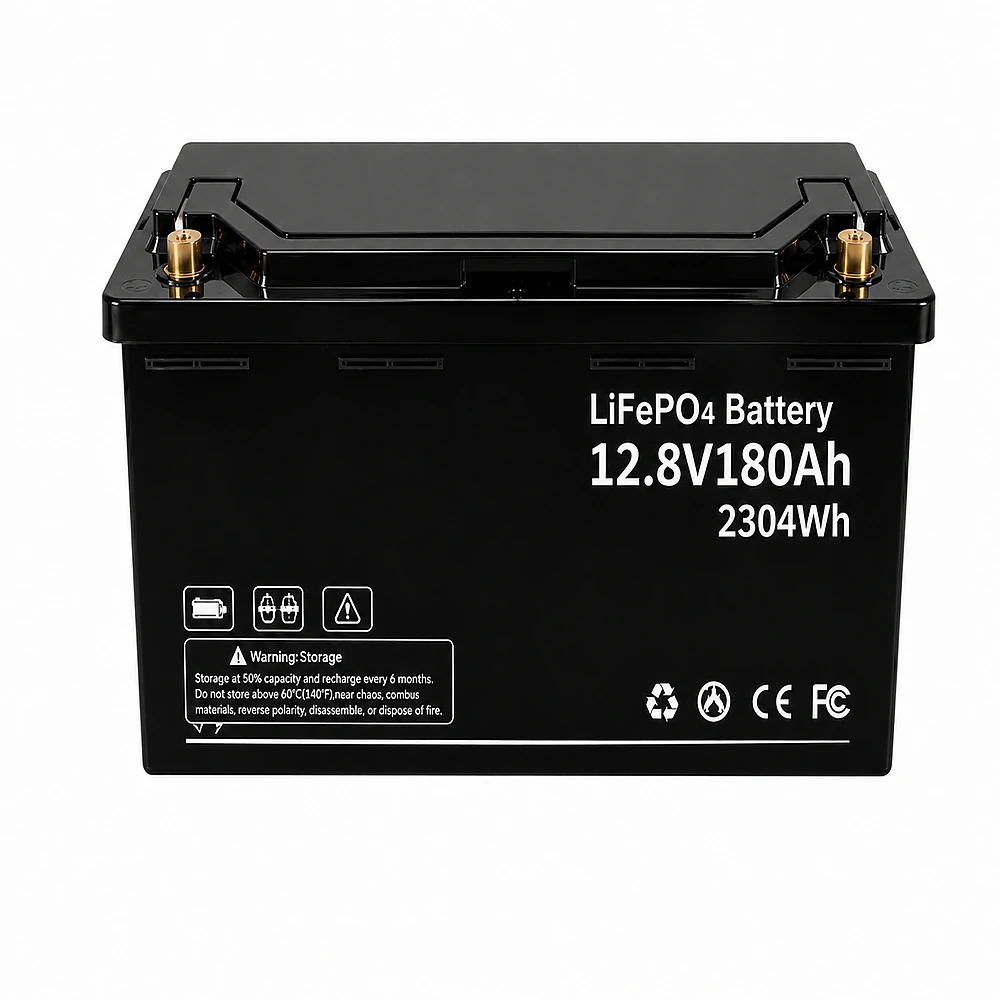

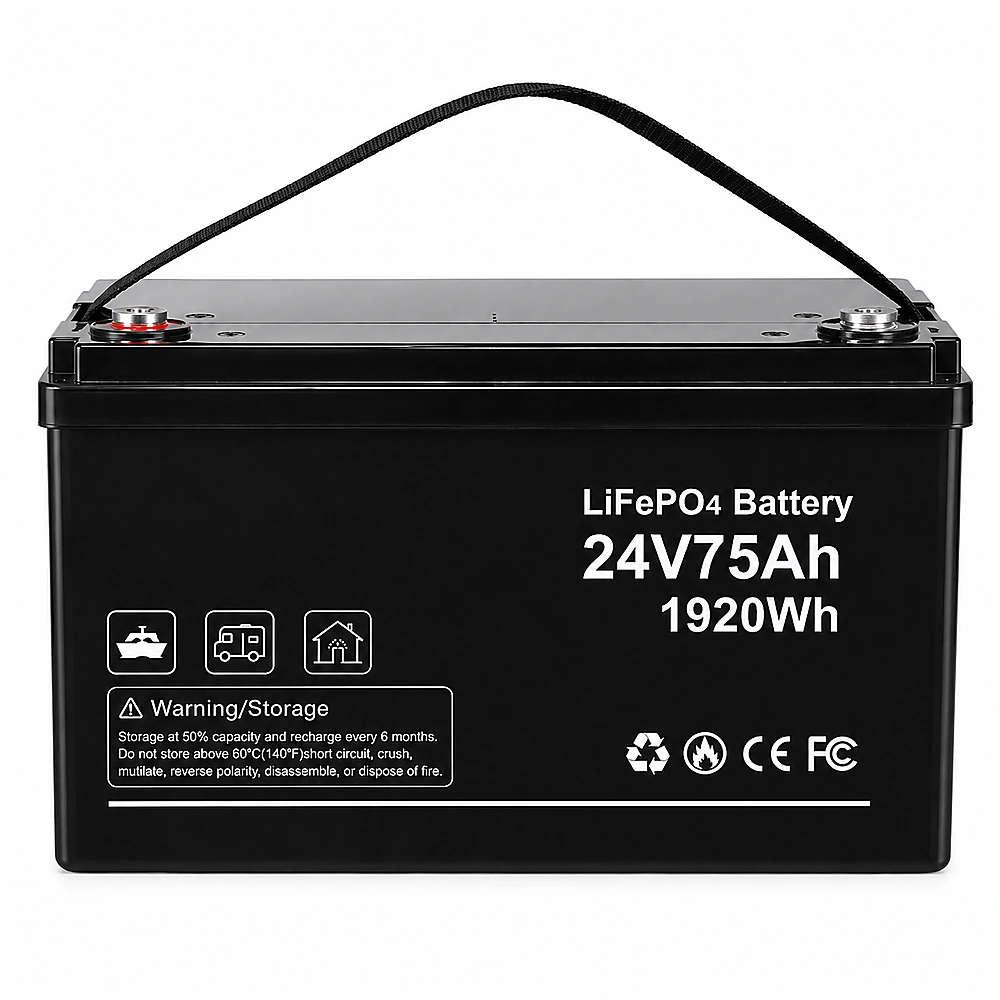

LiFePO4 Battery 12-48V Series

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Output Voltage:

Reliable energy storage for lighting, appliances, and onboard electronics.

Stable power supply for marine electronics and auxiliary loads with reduced weight.

Works with solar systems for off-grid cabins, small home backup, and portable energy needs.

Suitable for golf carts and other low-speed vehicles requiring dependable energy output.

Ideal for customers seeking a drop-in upgrade from lead-acid to lithium for better performance.

PARAMETER	SPECIFICATION
SERIES SPECIFICATIONS
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Series Voltage Range	12V–48V
Capacity Range	6Ah–400Ah
Cycle Life	≥6000 Cycles
Operating Temperature	-20°C to +60°C
Battery Management System	Intelligent BMS
BMS Protection	Overcharge Protection / Over-discharge Protection / Over-current Protection / Short Circuit Protection / Temperature Protection
Housing Design	Lead-Acid Style Case for Drop-In Lithium Replacement
OEM / ODM	Supported

MODEL	VOLTAGE	CAPACITY	LENGTH	WIDTH	HEIGHT
12.8V SERIES
LFP12-6	12.8V	6Ah	151mm	65mm	100mm
LFP12-12	12.8V	12Ah	150mm	95mm	103mm
LFP12-18	12.8V	18Ah	180mm	77mm	168mm
LFP12-24	12.8V	24Ah	166mm	175mm	125mm
LFP12-30	12.8V	30Ah	166mm	175mm	125mm
LFP12-50	12.8V	50Ah	229mm	138mm	210mm
LFP12-60	12.8V	60Ah	229mm	138mm	210mm
LFP12-80	12.8V	80Ah	260mm	168mm	210mm
LFP12-100	12.8V	100Ah	330mm	175mm	225mm
LFP12-120	12.8V	120Ah	330mm	175mm	225mm
LFP12-150	12.8V	150Ah	483mm	170mm	240mm
LFP12-200	12.8V	200Ah	522mm	240mm	225mm
LFP12-250	12.8V	250Ah	522mm	268mm	225mm
LFP12-300	12.8V	300Ah	522mm	268mm	225mm
LFP12-400	12.8V	400Ah	522mm	268mm	225mm
25.6V SERIES
LFP24-50	25.6V	50Ah	330mm	175mm	225mm
LFP24-100	25.6V	100Ah	522mm	240mm	225mm
LFP24-150	25.6V	150Ah	522mm	268mm	225mm
LFP24-200	25.6V	200Ah	522mm	268mm	225mm
