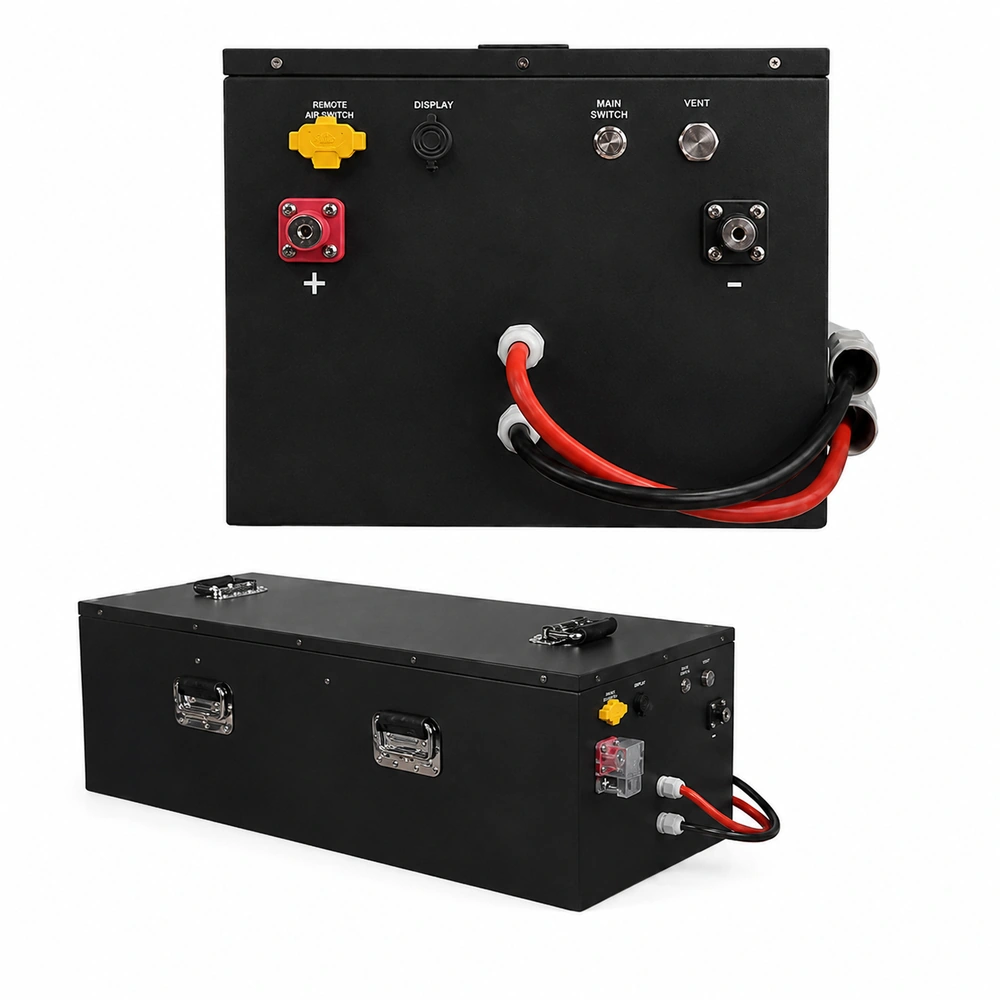

LiFePO4 Battery Two-Wheeled Vehicle & Electric Motorcycle Series

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Output Voltage:

Reliable power supply for daily commuting, delivery fleets, and commercial mobility usage.

Suitable for urban mobility solutions requiring stable performance and long lifespan.

An ideal replacement solution for customers upgrading from lead-acid batteries to LiFePO4.

Supports high-frequency usage scenarios with long cycle life and stable output.

Suitable for users who require efficient, durable power storage for mobility applications.

PARAMETER	SPECIFICATION
SERIES SPECIFICATIONS
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Voltage Range	48V–76.8V
Capacity Range	30Ah–180Ah
Operating Temperature	-20°C to +55°C
Battery Management System	Intelligent BMS
BMS Protection	Overcharge Protection / Over-discharge Protection / Over-current Protection / Short Circuit Protection / Temperature Protection
OEM / ODM	Supported

MODEL	VOLTAGE	CAPACITY	DIMENSIONS (L × W × H)	WEIGHT	PROTECTION BOARD CURRENT	APPLICABLE MOTOR POWER
48V SERIES
48V45Ah	48V	45Ah	180 × 170 × 320mm	17.5kg	50A	1200W
51.2V SERIES
51.2V45Ah	51.2V	45Ah	180 × 170 × 320mm	18.7kg	50A	1200W
64V SERIES
64V30Ah	64V	30Ah	180 × 170 × 320mm	15.2kg	40A	1000W
64V45Ah	64V	45Ah	235 × 175 × 320mm	22.6kg	50A	1500W
64V50Ah	64V	50Ah	415 × 236 × 175mm	25.8kg	80A	2000W
64V72Ah	64V	72Ah	406 × 282 × 225mm	31.8kg	100A	3000W
64V90Ah	64V	90Ah	545 × 345 × 210mm	43.8kg	120A	3500W
64V105Ah	64V	105Ah	545 × 325 × 210mm	53kg	120A	3500W
64V142Ah	64V	142Ah	560 × 340 × 265mm	66kg	150A	5000W
64V180Ah	64V	180Ah	700 × 345 × 270mm	96kg	200A	6000W
76.8V SERIES
76.8V30Ah	76.8V	30Ah	215 × 170 × 320mm	18.1kg	40A	1000W
76.8V45Ah	76.8V	45Ah	263 × 175 × 320mm	26.7kg	50A	1500W
76.8V50Ah	76.8V	50Ah	455 × 236 × 175mm	29.8kg	80A	2000W
76.8V72Ah	76.8V	72Ah	406 × 282 × 225mm	36.8kg	100A	3000W
76.8V90Ah	76.8V	90Ah	545 × 345 × 210mm	51.3kg	120A	3500W
76.8V105Ah	76.8V	105Ah	545 × 325 × 210mm	59kg	120A	3500W
76.8V142Ah	76.8V	142Ah	560 × 340 × 265mm	77kg	200A	5000W
76.8V180Ah	76.8V	180Ah	700 × 345 × 270mm	106kg	200A	6000W
