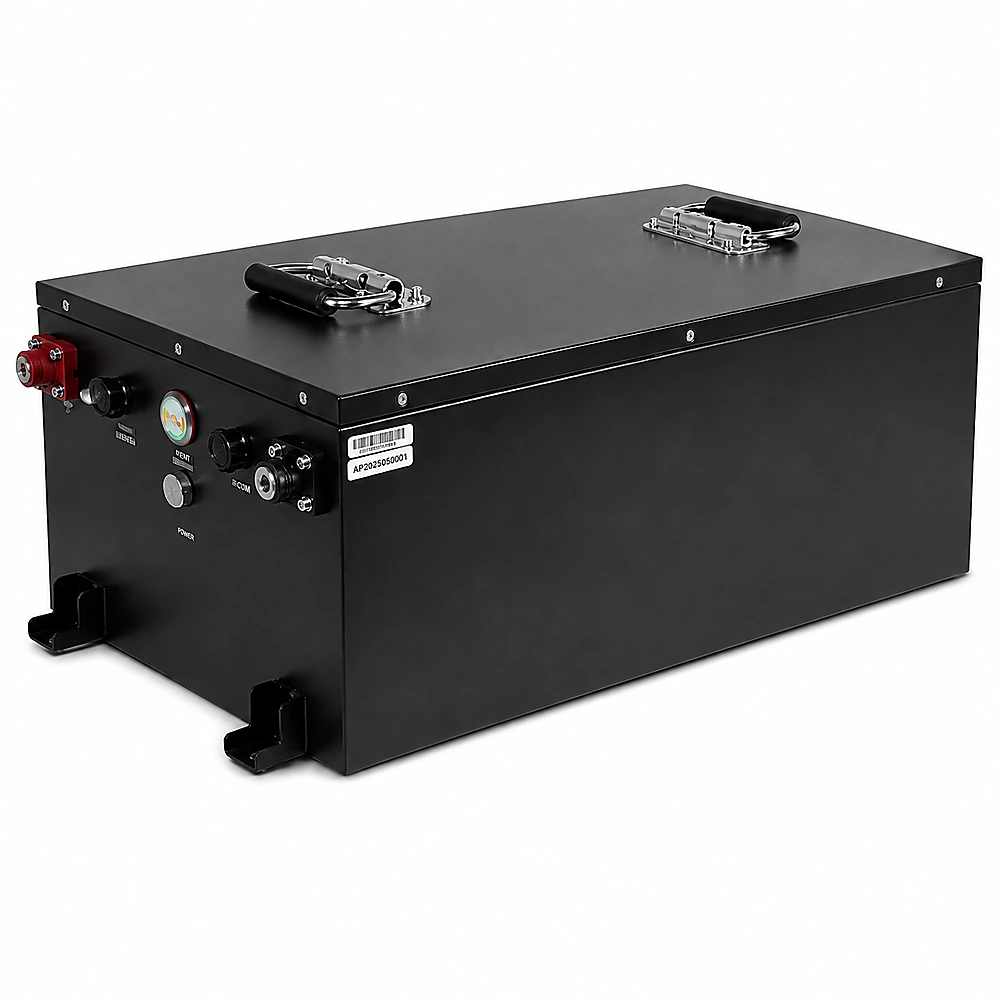

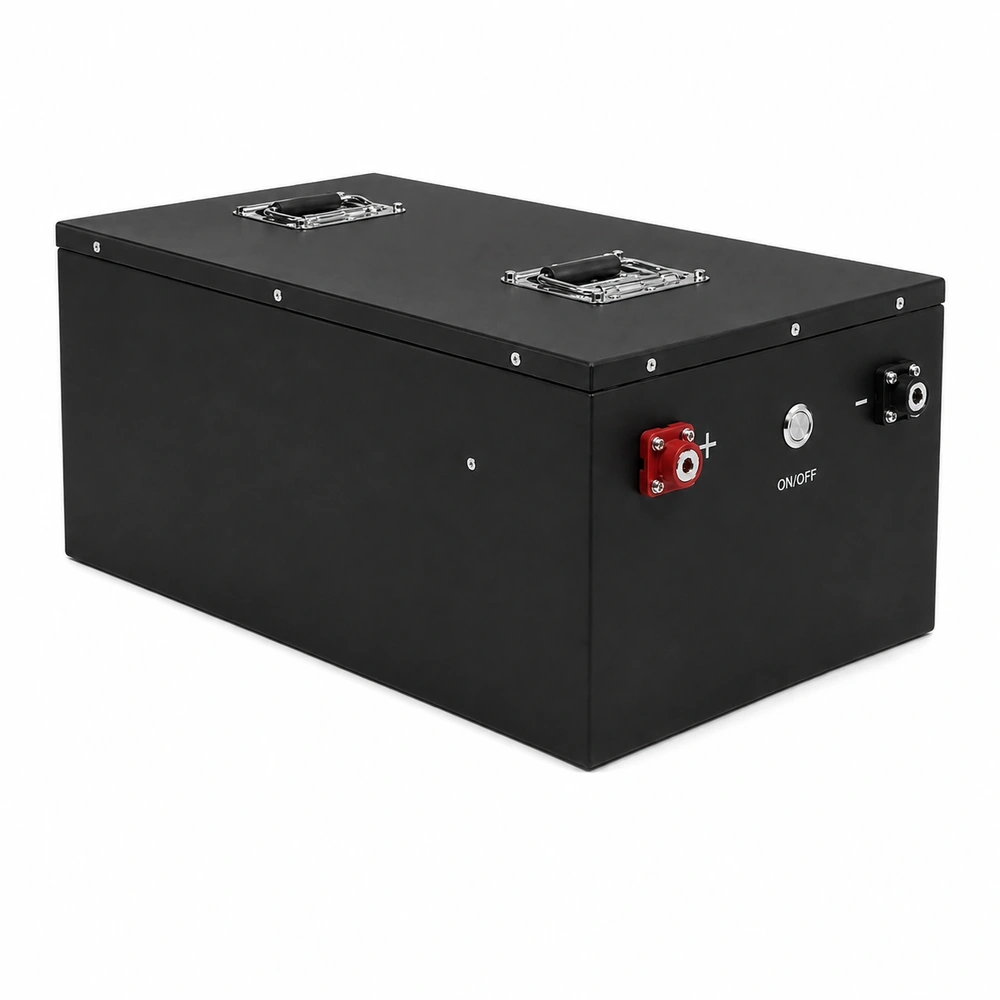

LiFePO4 Battery Tricycle & Four-Wheeled Vehicle Series

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Output Voltage:

Suitable for daily commuting, cargo transport, and commercial mobility operations.

Reliable power for community vehicles, light utility transport, and short-distance mobility.

Supports stable output for industrial parks, farms, and service vehicles.

Ideal replacement option for customers upgrading from lead-acid to LiFePO4 for better performance.

Built for high-frequency usage with stable output and long cycle life.

PARAMETER	SPECIFICATION
SERIES SPECIFICATIONS
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Available Voltage	38.4V / 51.2V / 73.6V / 76.8V
Capacity Range	20Ah–206Ah
Operating Temperature	-20°C to +55°C
Battery Management System	Intelligent BMS
BMS Protection	Overcharge Protection / Over-discharge Protection / Over-current Protection / Short Circuit Protection / Temperature Protection
OEM / ODM	Supported
Typical Applications	Electric Tricycles / Four-Wheeled Low-Speed Vehicles / Utility Vehicles / Light EV Applications / Commercial Fleet & Delivery Vehicles

MODEL	NOMINAL VOLTAGE	NOMINAL CAPACITY	LENGTH	WIDTH	HEIGHT
38.4V SERIES
38.4V 100Ah	38.4V	100Ah	385mm	338mm	245mm
51.2V SERIES
51.2V 100Ah	51.2V	100Ah	490mm	338mm	245mm
51.2V 105Ah	51.2V	105Ah	540mm	330mm	225mm
51.2V 206Ah	51.2V	206Ah	1040mm	185mm	230mm
73.6V SERIES
73.6V 20Ah	73.6V	20Ah	320mm	200mm	180mm
73.6V 30Ah	73.6V	30Ah	360mm	230mm	170mm
76.8V SERIES
76.8V 100Ah	76.8V	100Ah	740mm	338mm	245mm
76.8V 105Ah	76.8V	105Ah	800mm	360mm	175mm
