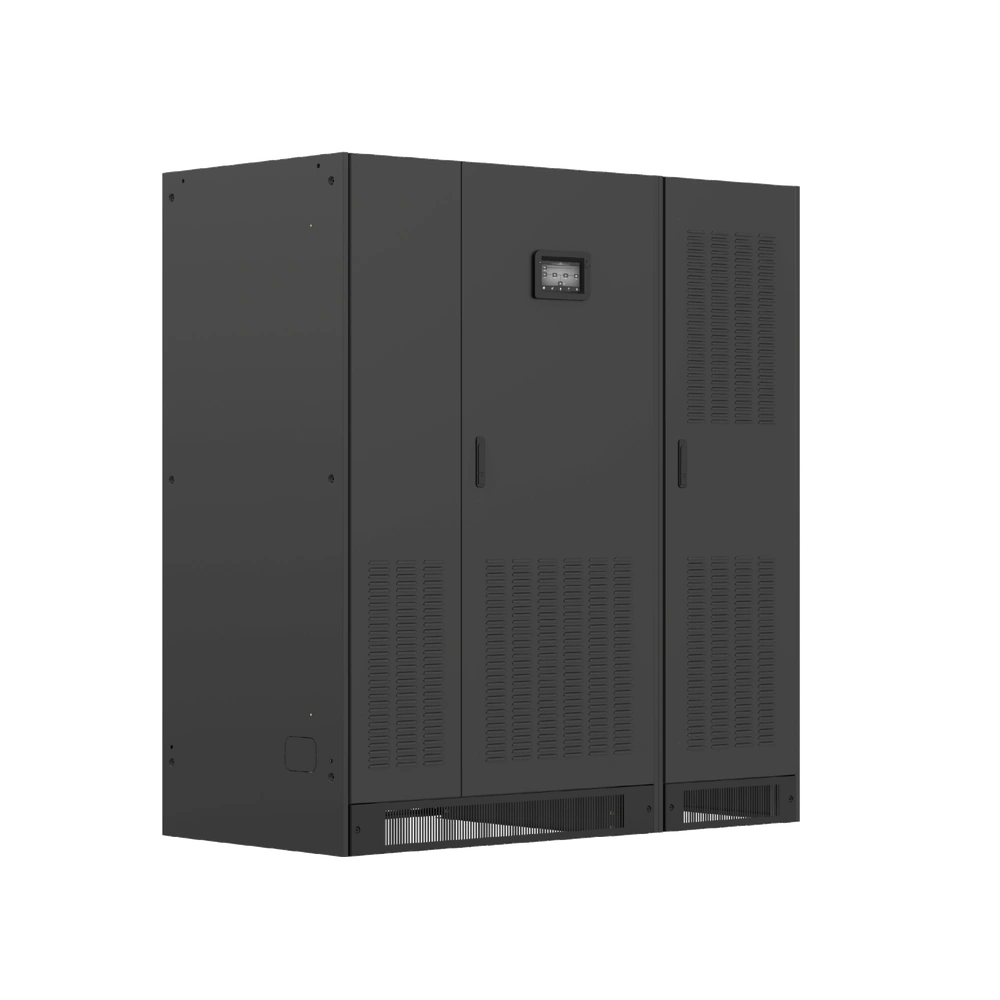

UPS / Microgrid Systems TGH33 Series 150–250kW PV-ESS All-in-One Microgrid UPS System

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: UPS / Microgrid Systems TGH33 Series 150–250kW
Brand:: VoltCrave

Talk to Our Energy Storage Team

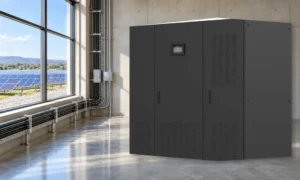

Solar-Storage Microgrid

A DC-coupled PV and battery architecture can form the core of a larger three-phase solar-storage system. Match the PV configuration, battery voltage, and load profile to the selected TGH150 or TGH250 model.

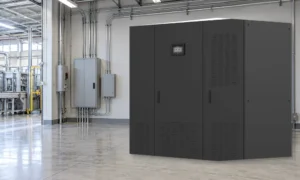

Industrial Peak Shaving

Choose load-priority, battery-priority, or peak-valley mode to coordinate battery dispatch with factory demand. Match battery and inverter capacity to the facility's operating schedule and peak load.

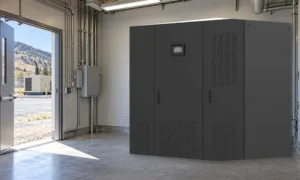

Weak-Grid Site Resilience

The listed 320–460 Vac input range and high load-impact capability support projects in areas with unstable utility supply. Pair the system with a properly sized battery and configure protection and transfer behavior for the site loads.

Critical Facility Backup

For high-priority commercial or infrastructure loads, the TGH150/TGH250 platform offers 150/250 kW rated power, configurable battery control, and a listed 0 ms inverter-to-bypass and bypass-to-inverter transition. Confirm backup boundaries and redundancy requirements during project design.

PARAMETER	TGH150	TGH250
BASIC SPECIFICATIONS
Product Series	TGH33 Series
Product Type	PV-ESS All-in-One Microgrid UPS System
Rated Capacity	165kVA	275kVA
Rated Power	150kW	250kW
Rated AC Input Voltage	400VAC
AC System	Three-Phase Five-Wire (3W+N+PE)
AC Input Voltage Range	320–460VAC
Rated Output Voltage	400VAC ±1%
Rated Frequency	50Hz / 60Hz
Frequency Range	45–55Hz / 55–65Hz
Isolation Transformer	Standard Configuration
Working Modes	Load Priority / Battery Priority / Peak Shaving and Valley Filling
PV INPUT SPECIFICATIONS
PV Open-Circuit Voltage	900VDC
MPPT Voltage Range	200–850VDC
Maximum PV Power	180kW (3 × 60kW)	300kW (5 × 60kW)
MPPT Rated Power	60kW
MPPT Start-Up Voltage	250VDC
PV Maximum Current	3 × 120A	5 × 120A
Number of MPPTs	3	5
RECTIFIER SPECIFICATIONS
Rectifier Input Voltage Range	320–460VAC
Rated Rectifier Frequency	50Hz / 60Hz (Configurable)
Rectifier Frequency Range	50Hz / 60Hz ±5Hz
INVERTER SPECIFICATIONS
Inverter Output Voltage	Three-Phase Five-Wire, 400VAC (3W+N+PE)
Selectable Output Phase Voltage	220VAC / 230VAC / 240VAC (Configurable)
Output Voltage Accuracy	±1%
Voltage Transient Range	±5%
Transient Recovery Time	20ms
Rated Output Frequency	50Hz / 60Hz ±1% (Configurable)
Frequency Tracking Range	50Hz / 60Hz ±3Hz
Output Waveform	Sine Wave
Waveform Distortion	≤3% (Linear Load)
Voltage Unbalance	±3% at 100% Unbalanced Load
OVERLOAD & SHORT-CIRCUIT PROTECTION
Overload 105%–110%	Transfer to Bypass After 1 Hour; Automatic Recovery After Load Reduction
Overload 110%–125%	Transfer to Bypass After 10 Minutes; Automatic Recovery After Load Reduction
Overload 125%–150%	Transfer to Bypass After 1 Minute; Automatic Recovery After Load Reduction
Overload 150%–200%	System Shutdown After 10 Seconds; Manual Restart After Load Reduction
Overload Above 200%	Immediate System Shutdown; Manual Restart After Load Reduction
Short-Circuit Protection	Current Limiting and Immediate Shutdown; Restart After User Confirmation
BYPASS SPECIFICATIONS
Rated Bypass Voltage	Three-Phase Five-Wire, 400VAC
Bypass Voltage Range	±20%
Bypass Frequency	50Hz / 60Hz ±5Hz
Inverter-to-Bypass Transfer Time	0ms
Bypass-to-Inverter Transfer Time	0ms
BATTERY SPECIFICATIONS
Battery Pack Voltage Range	486–864VDC
Number of Battery Cells	180–240 Cells (Lithium Battery)
Battery Capacity	Configurable
Discharge Cut-Off Voltage (25°C)	Configurable
Default Lithium Battery Charging Rate	0.5C
Adjustable Charging Rate	0.05C–2.0C
Depth of Discharge Setting	Configurable
BMS Compatibility	Compatible with Multiple BMS Protocols
COMMUNICATION & MONITORING
Communication Interfaces	RS232 / RS485 / LAN
Optional Communication	SNMP / Wi-Fi / 4G
Remote Control Functions	Inverter ON/OFF, Fault Reset, Emergency Shutdown
Dry Contact Output Rating	12VDC / 250VAC, 1A Max.
Dry Contact Alarm Signals	Bypass Input Fault / Rectifier Input Fault / System Fault / System Alarm / Low Battery Voltage / Output Overload / Fan Fault
Generator Control Signal	Generator ON/OFF (Configurable)
PHYSICAL SPECIFICATIONS
Product Dimensions (W × D × H)	1400 × 800 × 1800mm	1800 × 900 × 2000mm
Cooling Method	Forced Ventilation
Noise Level (1m)	65dB (Varies with Load and Temperature)
Mean Time Between Failures (MTBF)	200,000 Hours
Protection Rating (EN60529)	IP20
Cable Entry	Bottom Cable Entry
Installation Type	Fixed Cabinet Installation
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature	0°C to 40°C
Maximum Relative Humidity	90% RH (Non-Condensing)
Rated Power Altitude	Up to 2000m
Altitude Derating	1% Power Reduction per Additional 100m Above 2000m
Maximum Operating Altitude	4000m
