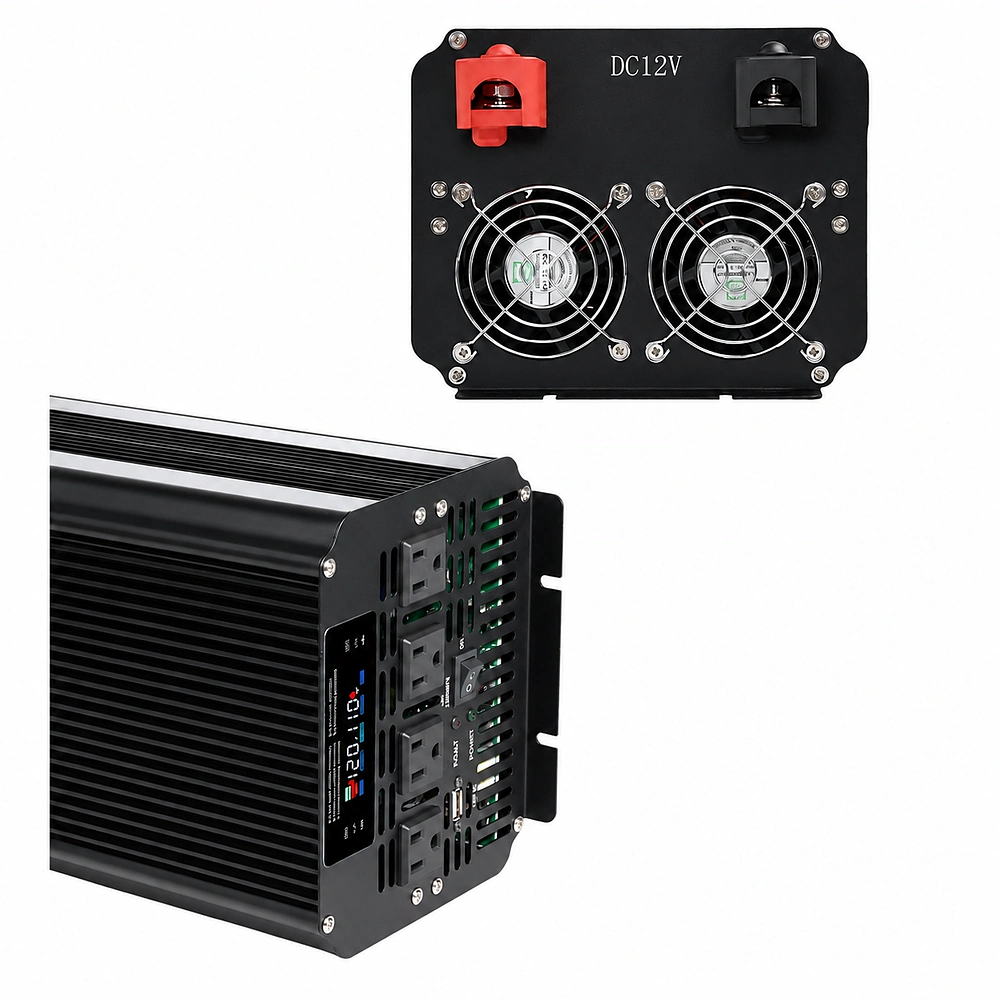

Pure Sine Wave Inverter 3000W/4000W
Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.
- Model:
- Pure Sine Wave Inverter 3000W/4000W
- Brand:
- VoltCrave
Output Voltage:
Outdoor Camping Power
Provides practical AC power for camping lights, fans, mobile devices, speakers and other compatible outdoor equipment from a connected battery system.
RV & Camper Power
Supplies AC power for RVs and camper vans, supporting laptops, fans, lighting, mobile-device charging and other compatible travel appliances from the vehicle battery system.
Picnic & Outdoor Leisure Power
Supports outdoor leisure activities by powering compatible lighting, speakers, mobile devices and small appliances during picnics, family outings and recreational use.
Outdoor Work & Tool Power
Provides mobile AC power for compatible work lights, battery chargers and selected power tools at temporary job sites, workshops and outdoor maintenance locations.
| PARAMETER | 3000W | 4000W |
|---|---|---|
| POWER SPECIFICATIONS | ||
| Continuous Power | 3000W | 4000W |
| Peak Power | 6000W | 8000W |
| ELECTRICAL SPECIFICATIONS | ||
| Input Voltage | 12V / 24V / 48V / 60V / 72V | 12V / 24V / 48V / 60V / 72V |
| Output Voltage | 110V / 220V | 110V / 220V |
| Output Waveform | Modified Sine Wave | |
| Frequency | 50Hz / 60Hz | |
| Efficiency | >90% | |
| No-Load Current | 0.8A | |
| DIMENSIONS & WEIGHT | ||
| Product Dimensions | 365 × 180 × 142mm | 430 × 180 × 142mm |
| Net Weight | 3.55kg | 4.45kg |
| INTERFACE & DESIGN | ||
| Output Socket Options | US / UK / AU / EU / Universal | |
| USB Port | Available | |
| External Wiring Port | Available | |
| ON / OFF Switch | Available | |
| LED Indicator | Available | |
| Voltage Display | Battery Voltage / Output Voltage | |
| DC Terminals | Positive Port / Negative Port | |
| CONSTRUCTION & COOLING | ||
| Housing Material | Aluminum Alloy Housing | |
| Cooling Method | Dual Built-In Cooling Fans | |
| Color | Black | |
| PROTECTION FUNCTIONS | ||
| Low Voltage Protection | Supported | |
| High Voltage Protection | Supported | |
| Overtemperature Protection | Supported | |
| Overload Protection | Supported | |
| Short Circuit Protection | Supported | |
| Reverse Connection Protection | Supported | |
| ERROR CODES | ||
| E-1 | Low Voltage Protection | |
| E-2 | High Voltage Protection | |
| E-3 | Overtemperature Protection | |
| E-4 | Overload Protection | |
| E-5 | Short Circuit Protection | |
| E-6 | Repeated Fault Shutdown – Restart Required | |
| CERTIFICATION & CUSTOMIZATION | ||
| Certifications Listed | CE / FCC / PSE / RoHS / UKCA / KC | |
| Customization | ODM / Socket Options / USB Options | |
| TYPICAL APPLICATIONS | ||
| Application Scenarios | Camping / RV / Picnic & Outdoor Recreation / Outdoor Work / Mobile Power Applications | |
