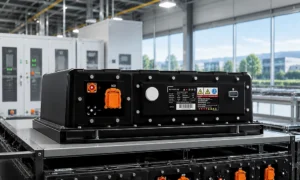

HV Modular RE-314 Liquid-Cooled Series

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: HV Modular RE-314 Liquid-Cooled Series
Brand:: VoltCrave

Talk to Our Energy Storage Team

Commercial & Industrial Energy Storage

Designed for factories, industrial parks, commercial buildings and other facilities requiring scalable battery energy storage for daily energy management.

Peak Shaving & Load Shifting

Stores electricity during off-peak periods and discharges during peak-demand periods to help reduce peak loads and electricity costs.

Solar + Storage Systems

Integrates with commercial and industrial solar installations to store excess photovoltaic energy and improve solar self-consumption.

Outdoor Energy Storage Cabinets

Liquid cooling, IP65 protection and a wide operating temperature range make the battery PACK suitable for outdoor energy storage cabinets.

Containerized Battery Energy Storage Systems

Modular PACK configurations can be integrated into containerized BESS for larger-scale commercial, industrial and renewable-energy projects.

Microgrid & Backup Power

Suitable for microgrids and backup power systems serving industrial facilities, remote sites and critical commercial loads.

PARAMETER	RE-314-P40Y	RE-314-P48Y	RE-314-P52Y	RE-314-P60Y	RE-314-P64Y	RE-314-P104Y
BATTERY SPECIFICATIONS
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Capacity	314Ah	314Ah	314Ah	314Ah	314Ah	314Ah
Cell Configuration	1P40S	1P48S	1P52S	1P60S	1P64S	1P104S
Rated Charge / Discharge Rate	0.25P / 0.5P @ 25°C
Nominal Voltage	128V	153.6V	166.4V	192V	204.8V	332.8V
Operating Voltage Range	100–146V	120–175.2V	130–189.8V	150–219V	160–233.6V	260–379.6V
Nominal Energy	40.192kWh	48.230kWh	52.250kWh	60.288kWh	64.307kWh	104.499kWh
Rated Operating Current	157A
Cycle Life	≥6000 Cycles
THERMAL & ENVIRONMENTAL SPECIFICATIONS
Cooling Method	Liquid Cooling
Operating Temperature Range	5°C to 45°C
Operating Humidity Range	0–95% RH, Non-Condensing
Ingress Protection Rating	IP65
DIMENSIONS & WEIGHT
Dimensions (W × D × H)	790 × 947 × 240mm	790 × 1087 × 240mm	790 × 1165 × 240mm	790 × 1311 × 240mm	790 × 1384 × 240mm	790 × 2200 × 240mm
Weight	245 ± 5kg	290 ± 5kg	310 ± 5kg	355 ± 5kg	377 ± 5kg	660 ± 15kg
APPLICATION & CERTIFICATION
Typical Applications	Containerized Energy Storage Systems / Outdoor Energy Storage Cabinets
Certifications	IEC / CE / UN38.3
