Pure Sine Wave Inverter 350W/500W/800W/1000W
Energy storage product for B2B applications
View Details →
Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.
Designed for small commercial facilities, workshops and distributed energy storage projects requiring modular battery capacity.

Compact air-cooled PACKs can be integrated into protected outdoor energy storage cabinets for modular commercial and distributed storage systems.

Multiple battery PACKs can be combined into racks and battery clusters for containerized energy storage applications.

Suitable for storing excess photovoltaic electricity and increasing solar self-consumption in commercial and distributed solar projects.

Provides battery capacity for microgrids and backup power systems serving commercial facilities, remote sites and distributed loads.

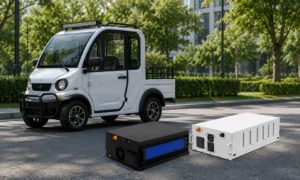

The 51.2V and 64V platforms can support selected low-speed electric vehicles and specialized electric equipment where high-capacity LFP batteries are required.

| PARAMETER | RE-314-P16F | RE-314-P20F |
|---|---|---|
| BATTERY SPECIFICATIONS | ||
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4) | |
| Nominal Capacity | 314Ah | 314Ah |
| Cell Configuration | 1P16S | 1P20S |
| Rated Charge / Discharge Rate | 0.25P / 0.5P @ 25°C | 0.25P / 0.5P @ 25°C |
| Nominal Voltage | 51.2V | 64V |
| Operating Voltage Range | 40–58.4V | 50–73V |
| Nominal Energy | 16.077kWh | 20.096kWh |
| Rated Operating Current | 157A | 157A |
| PERFORMANCE | ||
| Cycle Life | ≥6000 Cycles | |
| Cooling Method | Air Cooling | |
| ENVIRONMENTAL SPECIFICATIONS | ||
| Operating Temperature Range | 5°C to 45°C | |
| Operating Humidity Range | 0–95% RH, Non-Condensing | |
| Ingress Protection Rating | IP20 | |
| DIMENSIONS & WEIGHT | ||
| Dimensions (W × D × H) | 492 × 787 × 235mm | 492 × 961 × 232mm |
| Weight | 120 ± 5kg | 135 ± 5kg |
| APPLICATION & CERTIFICATION | ||
| Typical Applications | Containerized Energy Storage Systems / Outdoor Energy Storage Cabinets | |
| Certifications | IEC / CE / UN38.3 | |
