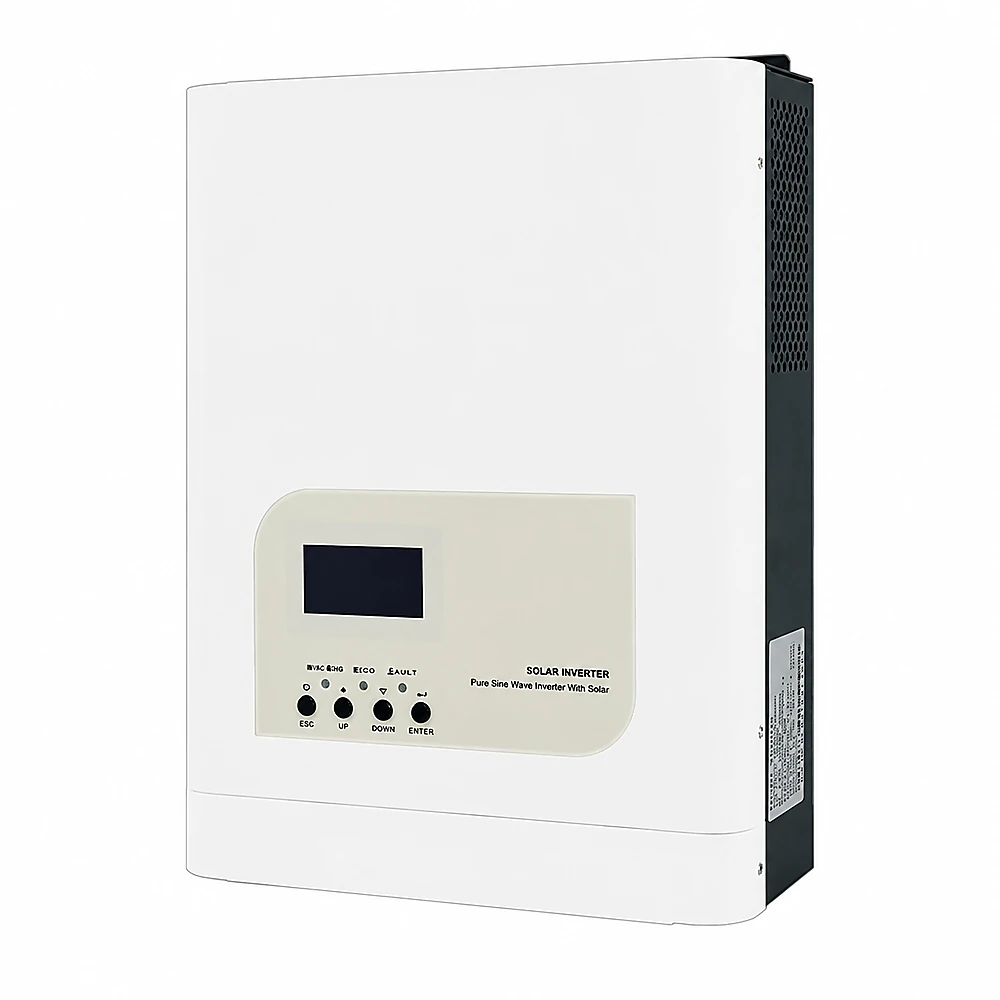

Solar Inverter VS-series | 400W–1600W 500-2000VA

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Inverter VS-series | 400W–1600W 500-2000VA
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

MODEL	VS0512AP5	VS0812AP5	VS1012AP5	VS1512/24AP5	VS2024AP5
AC INPUT
AC Input Voltage	220VAC (Standard)
Input Voltage Range	154–264VAC ±5V (Normal Mode) 185–264VAC ±3V (UPS Mode)
Input Frequency	50 / 60Hz ±5%
AC MODE OUTPUT
Output Capacity	500VA	800VA	1000VA	1500VA	2000VA
Rated Output Power	400W	640W	800W	1200W	1600W
AC Mode Output Voltage	220VAC ±10%
AC Mode Output Frequency	Output frequency under mains power is the same as the input frequency
BATTERY MODE OUTPUT
Battery Mode Output Voltage	220VAC ±3%
Battery Mode Output Frequency	50Hz or 60Hz ±1%
Battery Mode Output Wave	Pure Sine Wave
BATTERY
Battery Type	External Lead-acid Battery / Gel Battery / Water Battery / Lithium Battery
Battery Voltage	12VDC	12VDC	12VDC	12VDC / 24VDC	24VDC
Battery Charging Voltage	13.7VDC	13.7VDC	13.7VDC	13.7VDC / 27.4VDC	27.4VDC
AC Charging Input Voltage Range	154–275VAC ±5V
PV INPUT
Solar Charging Method	PWM
Maximum PV Array Power	800W	800W	800W	12V: 800W 24V: 1600W	1600W
Solar Input Voltage Range	15–50VDC	15–50VDC	15–50VDC	12V: 15–50VDC 24V: 30–105VDC	30–105VDC
Maximum PV Open Circuit Voltage	50VDC	50VDC	50VDC	12V: 50VDC 24V: 105VDC	105VDC
Maximum Solar Charging Current	60A	60A	60A	60A	60A
AC CHARGING
Maximum AC Charge Current	13A	21A	27A	12V: 40A 24V: 20A	27A
TRANSFER & PROTECTION
Transfer Time	≤10ms (UPS Mode) / ≤20ms (INV Mode)
Load Peak Ratio	Maximum 3:1
Protection Function	Under Mains Power: Input over-current fuse protection Under Inverter Mode: Overload protection, short-circuit protection, low-voltage protection and battery reverse-connection protection
DISPLAY & NOTIFICATION
Status Display	Displays AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage, load current and other operating parameters.
Low Battery Alarm	Low-battery protection: long buzzer alarm. Low battery: buzzer sounds every second.
Fault Alarm	Machine fault buzzer alarm.
Overload Alarm	When overload is below 130%, the buzzer sounds every second and output shuts down after 30 seconds. When overload exceeds 150%, output shuts down after approximately 300ms.
ENVIRONMENTAL
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 45°C
Relative Humidity	10%–90% RH, Non-condensing
Noise	<45dB
