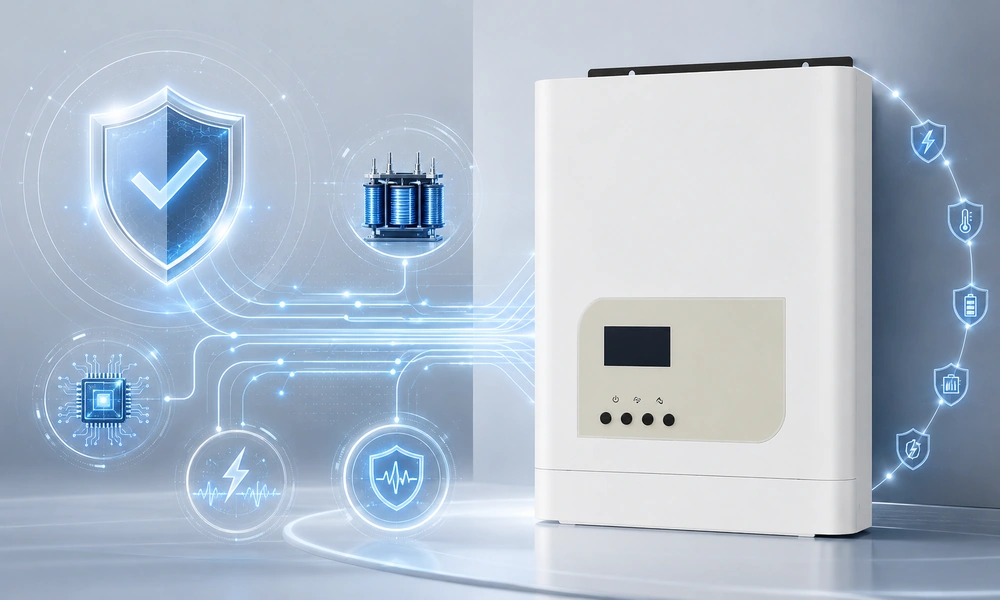

Solar Inverter HB-series | 2kVA–10kVA

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Inverter HB-series | 2kVA–10kVA
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

Smart Power Management with Pure Sine Wave Output

Delivers clean and stable pure sine wave power with intelligent DC start, automatic self-diagnostics, generator start control, and AVR voltage regulation. Selectable charging current and support for both lead-acid and lithium batteries provide flexible, efficient, and reliable performance for various backup power applications.

MODEL	HB2024F	HB3024F	HB3048F	HB5048F	HB10048F
BASIC PARAMETERS
System Capacity	2000VA	3000VA	3000VA	5000VA	10000VA
Rated Output Power	1600W	2400W	2400W	4000W	8000W
AC INPUT
AC Input Voltage	220VAC / 110VAC
Input Voltage Range	220V: 154–264VAC ±3V (Normal Mode) 185–264VAC ±3V (UPS Mode) 110V: 77–132VAC ±3V (Normal Mode) 92–132VAC ±3V (UPS Mode)
Input Frequency	50 / 60Hz ±5%
AC MODE OUTPUT
AC Mode Output Voltage	Same as Input Voltage
AC Mode Output Frequency	Same as Input Frequency
BATTERY MODE OUTPUT
Battery Mode Output Voltage	220VAC ±10% / 110VAC ±10%
Battery Mode Output Frequency	50Hz or 60Hz ±1%
Output Waveform	Pure Sine Wave
BATTERY & CHARGING
Battery Type	Lead-acid Battery / Water Battery / Lithium Battery
Battery Voltage	24VDC	24VDC	48VDC	48VDC	48VDC
Battery Charging Voltage	27VDC	27VDC	54VDC	54VDC	54VDC
Max AC Charging Current	20A	30A	15A	22A	56A
AC Charging Input Voltage Range	150–280VAC
SYSTEM OPERATION
Transfer Time	≤10ms
Load Peak Ratio	Max. 3:1
ECO Mode Power	15W	16W	16W	23W	32W
PROTECTION
Protection Functions	Overload Protection / Short-circuit Protection / Low-voltage Protection / Battery Reverse-connection Protection
DISPLAY & ALARM
Status Display	AC Voltage / AC Frequency / Output Frequency / Battery Voltage / Load Current
Low Battery Alarm	Low-battery protection: long buzzer alarm. Low battery: buzzer sounds every second.
Overload Alarm	Overload below 130%: buzzer sounds every second. Overload above 150%: output shuts down after approximately 300ms.
Fault Alarm	Machine Fault – Long Buzzer Alarm
ENVIRONMENTAL CONDITIONS
Operating Temperature	0°C to 40°C
Storage Temperature	-15°C to 45°C
Relative Humidity	10%–90% RH, Non-condensing
Noise	<45dB
MECHANICAL
Dimensions (D × W × H)	385 × 190 × 382mm	385 × 190 × 382mm	385 × 190 × 382mm	385 × 190 × 382mm	552 × 190 × 382mm
Net Weight	14.6kg	17.2kg	17.85kg	22kg	36.1kg
