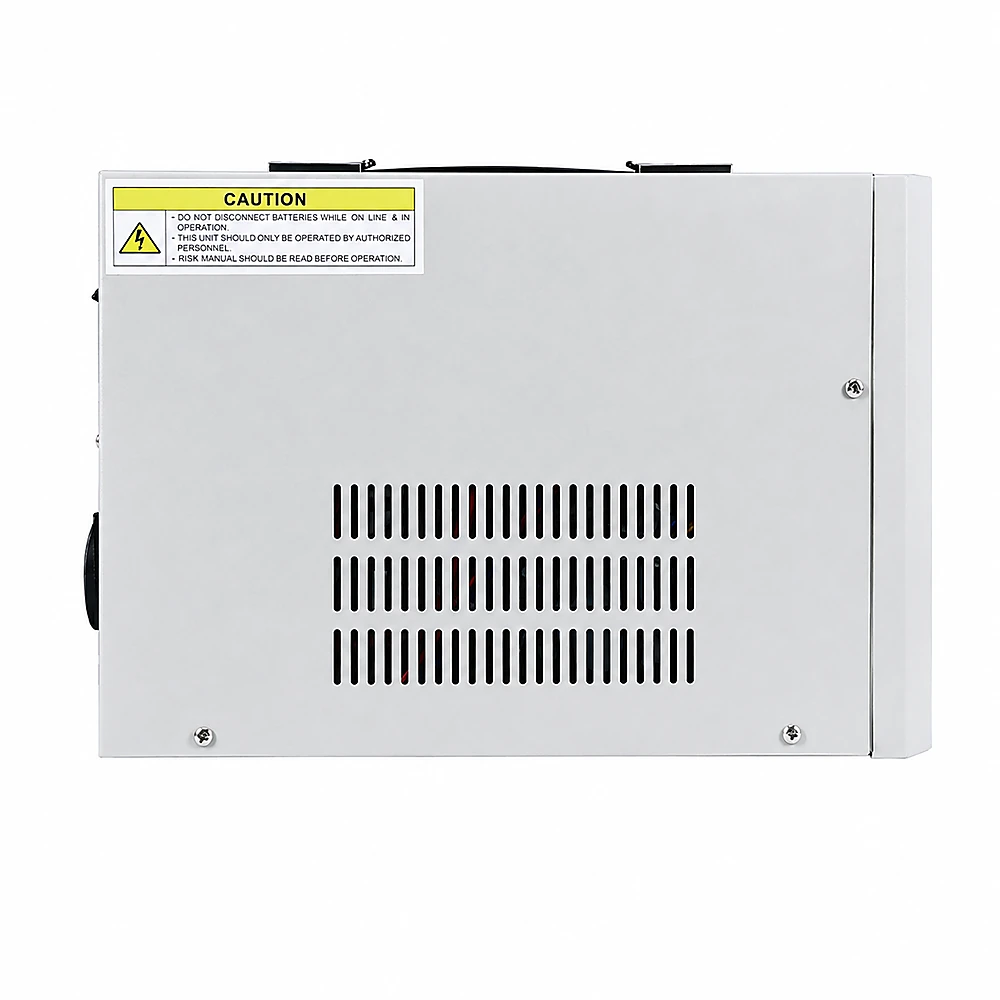

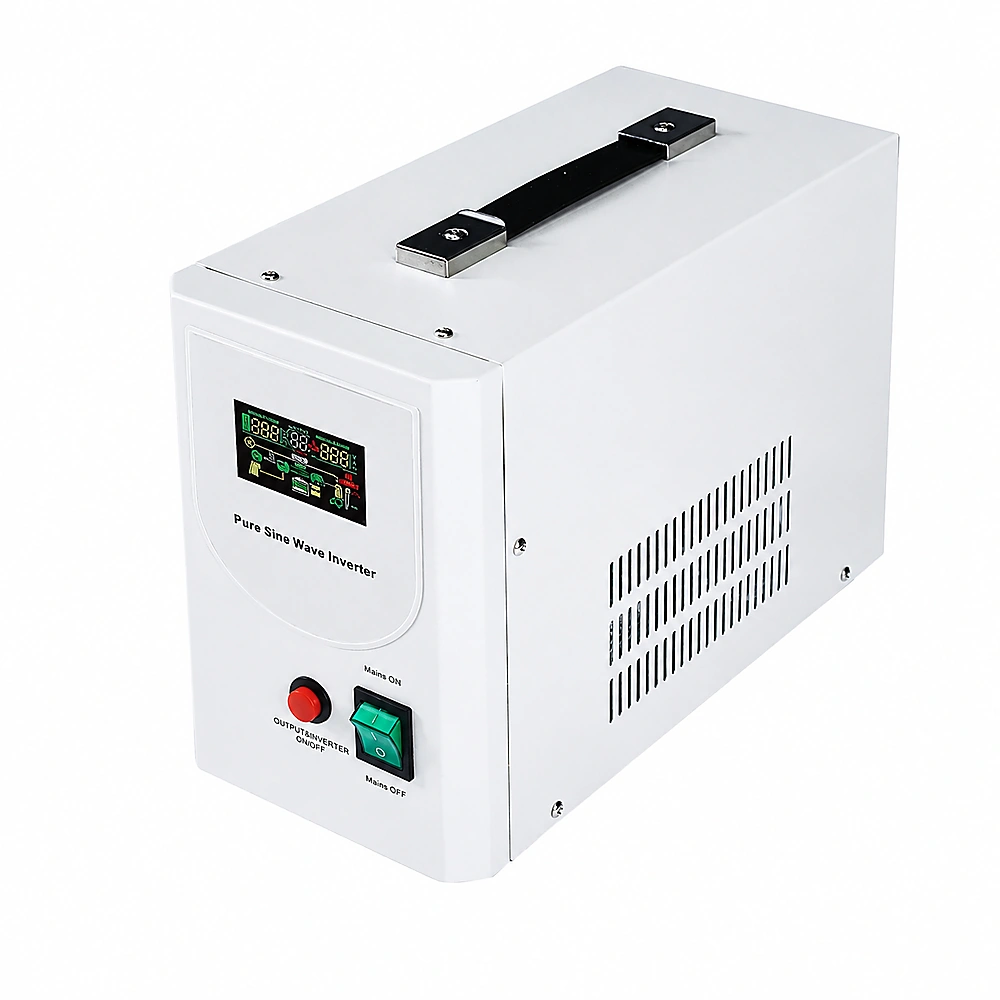

Solar Inverter HB-series | 500VA–1500VA

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Inverter HB-series | 500VA–1500VA
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

Intelligent Pure Sine Wave Power Management

Provides stable pure sine wave output with automatic self-diagnostics, generator start control, AVR voltage regulation, and auto-restart functionality. Adjustable charging current and compatibility with both lead-acid and lithium batteries ensure efficient, flexible, and reliable power performance for a wide range of backup power applications.

MODEL	HB0512	HB0812	HB1012	HB1512	HB1524
BASIC PARAMETERS
System Capacity	500VA	800VA	1000VA	1500VA	1500VA
Rated Output Power	400W	640W	800W	1200W	1200W
AC INPUT
AC Input Voltage	220VAC / 110VAC
Input Voltage Range	220V: 145–275VAC ±3V 110V: 73–137VAC ±3V
Input Frequency	50 / 60Hz ±5%
AC MODE OUTPUT
AC Mode Output Voltage	Same as Input Voltage
AC Mode Output Frequency	Same as Input Frequency
BATTERY MODE OUTPUT
Battery Mode Output Voltage	220VAC ±10% / 110VAC ±10%
Battery Mode Output Frequency	50Hz or 60Hz ±1%
Output Waveform	Pure Sine Wave
BATTERY & CHARGING
Battery Type	Lead-acid Battery / Water Battery / Lithium Battery
Battery Voltage	12VDC	12VDC	12VDC	12VDC	24VDC
Battery Charging Voltage	13.75VDC	13.75VDC	13.75VDC	13.75VDC	27VDC
Max AC Charging Current	8A	13A	18A	30A	15A
AC Charging Input Voltage Range	150–280VAC
SYSTEM OPERATION
Transfer Time	≤10ms
Load Peak Ratio	Max. 3:1
ECO Mode Power	6W	8W	9W	11W	12W
PROTECTION
Protection Functions	Overload Protection / Short-circuit Protection / Low-voltage Protection / Battery Reverse-connection Protection
DISPLAY & ALARM
Status Display	AC Voltage / AC Frequency / Output Frequency / Battery Voltage / Load Current
Low Battery Alarm	Low-battery protection: long buzzer alarm. Low battery: buzzer sounds every second.
Overload Alarm	Overload below 130%: buzzer sounds every second. Overload above 150%: output shuts down after approximately 300ms.
Fault Alarm	Machine Fault – Long Buzzer Alarm
ENVIRONMENTAL CONDITIONS
Operating Temperature	0°C to 40°C
Storage Temperature	-15°C to 45°C
Relative Humidity	10%–90% RH, Non-condensing
Noise	<45dB
MECHANICAL
Dimensions	300 × 144 × 213mm
Net Weight	6.5kg	6.9kg	7.8kg	8.59kg	9.5kg
