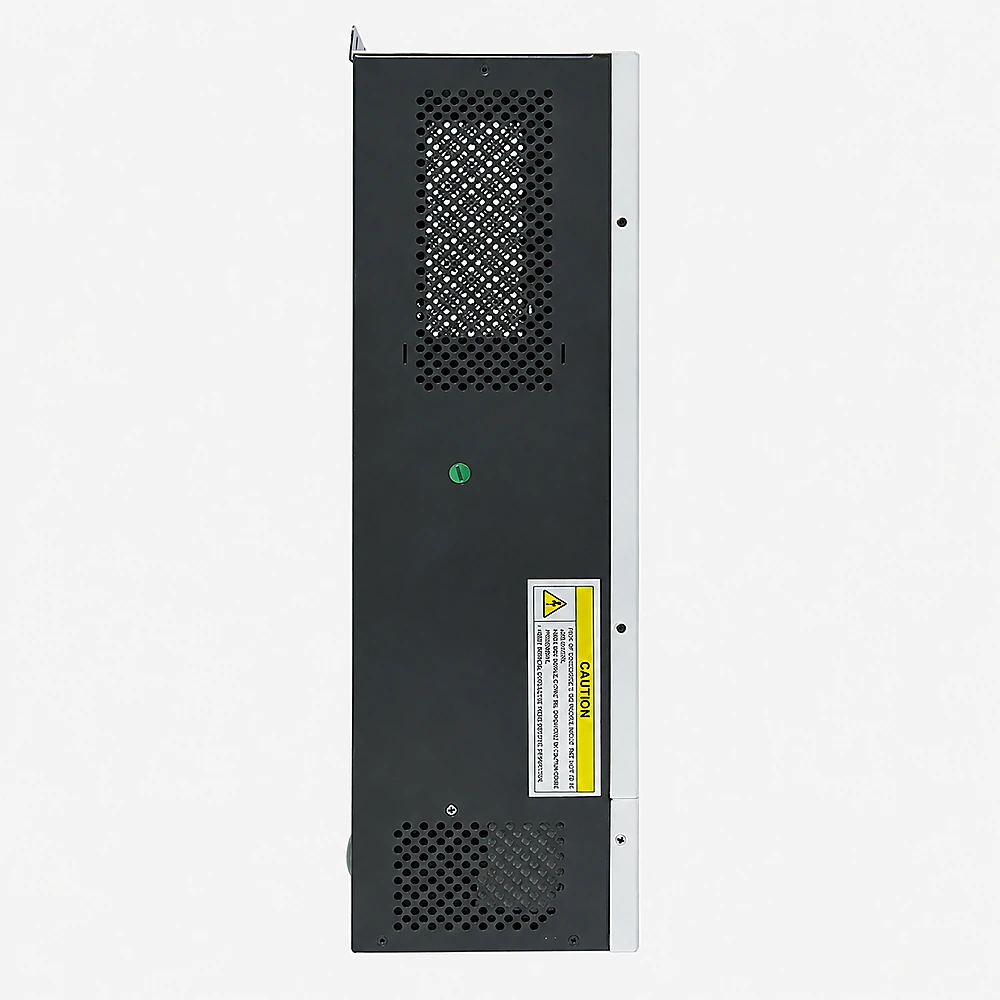

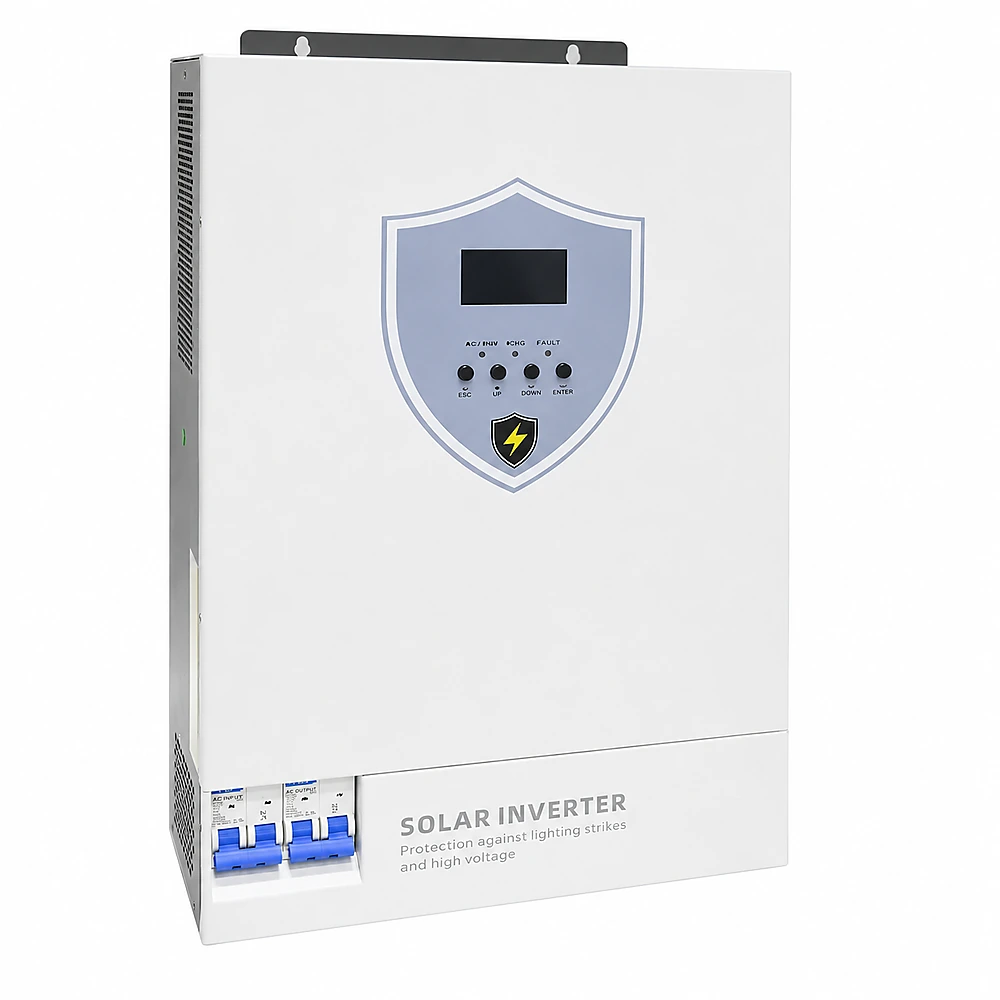

Solar Inverter IV-series

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Inverter IV-series
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

MODEL	IV4024SMH	IV6248SMH	IV11048SMH
AC INPUT
Rated Input Voltage	220 / 230 / 240VAC
Voltage Range	90–280VAC ±3V (Normal Mode) 170–280VAC ±3V (UPS Mode)
Frequency Range	50Hz / 60Hz (Adaptive)
OUTPUT
Battery Inverter	4000W	6200W	11000W
Photovoltaic Inverter	4500W	6500W	12000W
Peak Power	8000VA	12400VA	22000VA
Output Voltage	220 / 230 / 240VAC ±5%
Output Frequency	50 / 60Hz ±0.1%
Waveform	Pure Sine Wave
Switching Time (Adjustable)	Computer Equipment: 10ms Home Appliances: 20ms
Overload Capacity	Battery Mode: 11s @ 105%–150% Load 2s @ 150%–200% Load 400ms @ >200% Load
GRID-CONNECTED OPERATION
Output Voltage	220 / 230 / 240VAC
Grid Feeding Voltage Range	195–253VAC
Grid Feeding Frequency Range	49–51 ±1Hz / 59–61 ±1Hz
Nominal Output Current	17.4A	26.9A	47.8A
Power Factor Range	>0.99
Maximum Conversion Efficiency (DC/AC)	98%
BATTERY
Rated Voltage	24VDC	48VDC
Constant Voltage Charging Voltage (Configurable)	28.2VDC	56.4VDC
Float Charging Voltage (Configurable)	27VDC	54VDC
PV CHARGER
PV Charging Method	MPPT
Maximum Input Power of PV	6500W	8500W
MPPT Input Voltage Range	60–500VDC	60–500VDC
Optimal Vmp Operating Range	300–400VDC	300–400VDC
Maximum PV Input Voltage	500VDC	500VDC
Maximum PV Input Current	27A	27A	27A / 27A
Maximum PV Charging Current	120A	120A	150A
Maximum Mains Charging Current	100A	100A	150A
Maximum Charging Current	120A	120A	150A
DISPLAY
LCD Interface	Can display operation mode / load / input / output, etc.

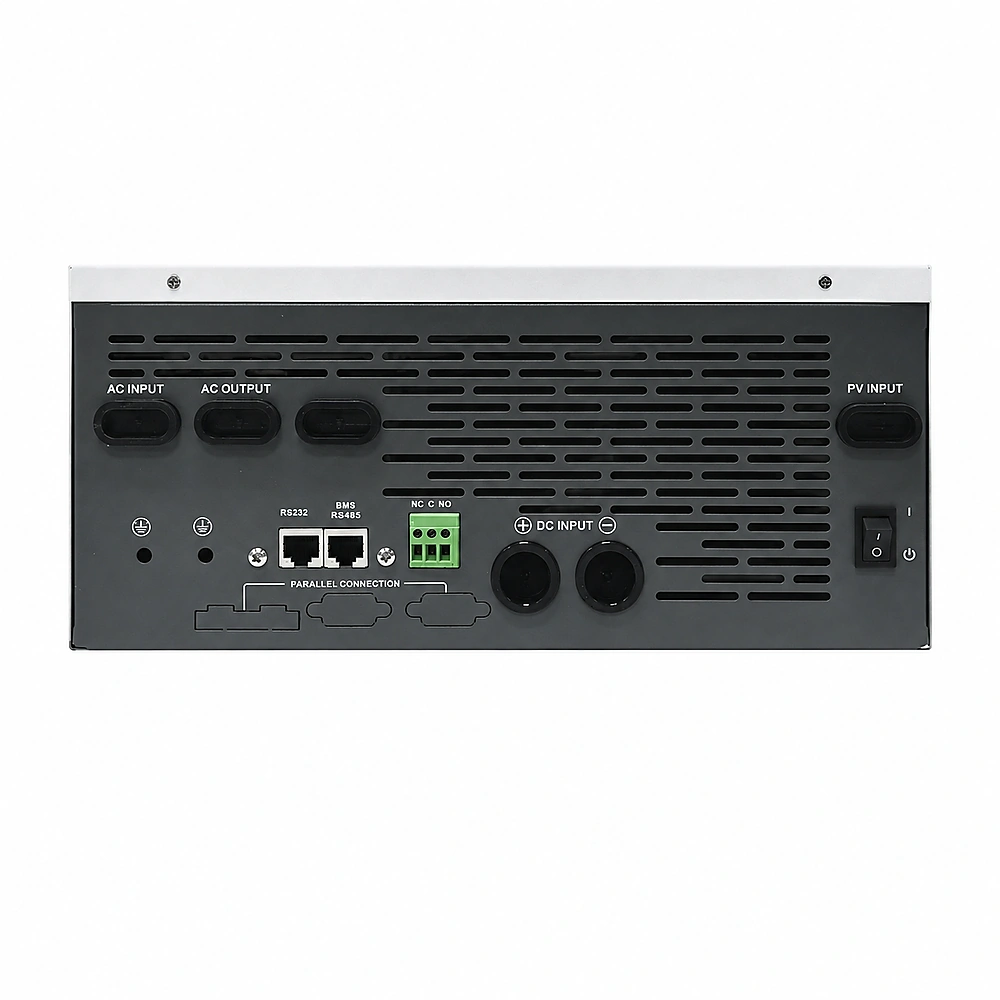

INTERFACE
RS232	Baud Rate 2400
Expansion Slot Communication Interface	Lithium Battery BMS Communication Card / WiFi Card / Dry Contact Card, etc.
Parallel Interface	No Parallel Function		Parallel (Network) Function
ENVIRONMENTAL PARAMETERS
Operating Ambient Temperature	-10°C to +50°C
Operating Environment Humidity	20%–95% RH (No Condensation)
Storage Temperature	-15°C to +60°C
Noise	≤50dB
PHYSICAL PARAMETERS
Depth × Width × Height	483 × 313 × 143mm
Standards & Certifications	EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1
