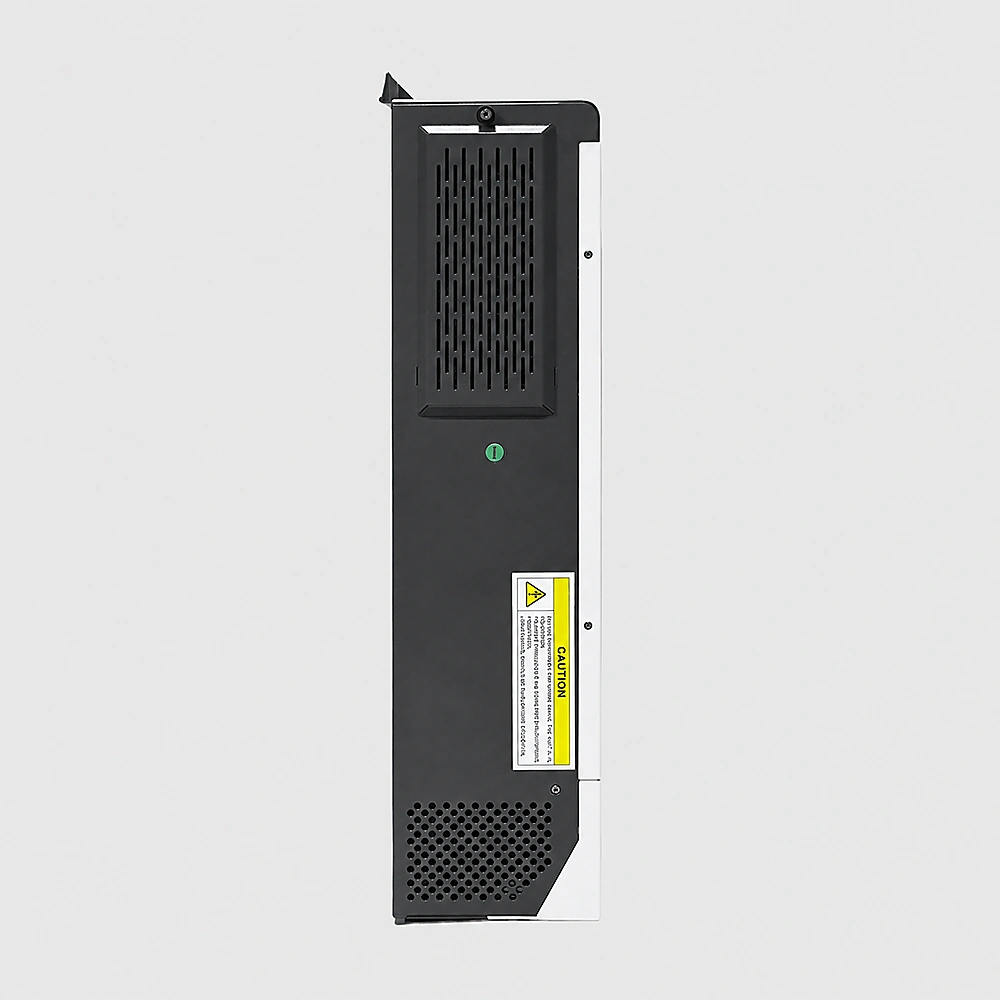

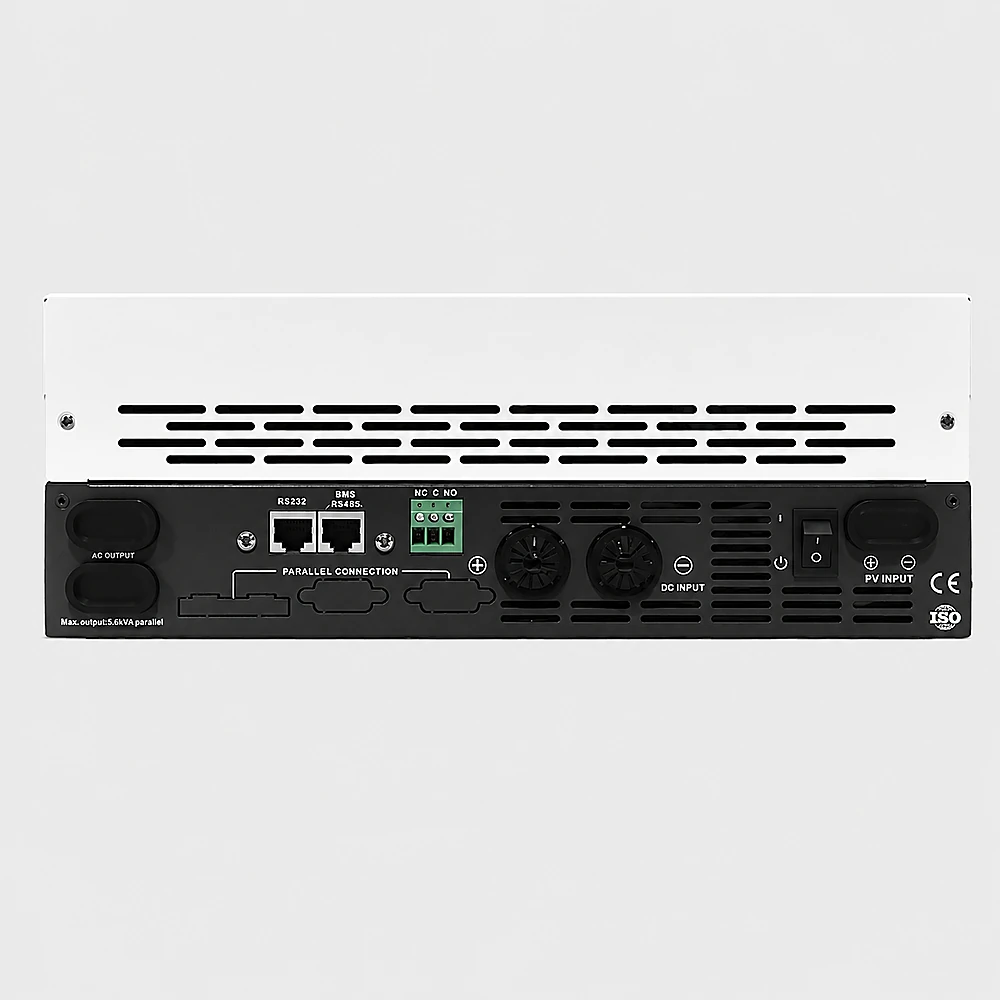

Solar Inverter GA PRO-series | 4kW/6.2kW

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Inverter GA PRO-series | 4kW/6.2kW
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

MODEL	GA4024SMH	GA6248SMH
AC INPUT
Input Formation	L + N + PE
AC Input	220 / 230 / 240VAC
Input Voltage Range	90–280VAC ±3V (Normal Mode) 170–280VAC ±3V (UPS Mode)
Frequency	50 / 60Hz (Adaptive)
INVERTER OUTPUT
Rated Power	4000W	6200W
Dual Output Power	4000W / 4500W	6200W / 6500W
Output Voltage (AC)	220 / 230 / 240VAC ±5%
Output Frequency	50 / 60Hz ±0.1%
Output Wave	Pure Sine Wave
Transfer Time (Adjustable)	10ms for Computer Equipment 20ms for Household Equipment
Peak Power	8000VA	12400VA
Overload Ability	Battery Mode: 11s @ 105%–150% Load 2s @ 150%–200% Load 400ms @ >200% Load
GRID-CONNECTED OPERATION
Output Voltage	220 / 230 / 240VAC
Grid Voltage Range	170–265VAC
Grid Frequency Range	49–51 ±1Hz / 59–61 ±1Hz
Output Current	17.4A	26.9A
Power Factor Range	>0.99
Max Efficiency (DC/AC)	>98%
BATTERY CHARGING
Rated Voltage	24VDC	48VDC
Constant Charging Voltage	28.2VDC	56.4VDC
Float Charging Voltage	27VDC	54VDC
PV INPUT & CHARGING
PV Charging Method	MPPT
Max PV Input Power	6500W	8500W
PV Input Voltage Range	60–500VDC	60–500VDC
Max PV Input Voltage	500VDC	500VDC
Max PV Input Current	27A	27A
Max PV Charge Current	120A	120A
Max AC Charge Current	100A	100A
Max Charge Current	120A	120A
COMMUNICATION & DISPLAY
LCD	Can display operating mode / load / input / output
RS232	5PIN / Pitch 2.54mm, Baud Rate 2400
Expansion Slot Communication Interface	Lithium Battery BMS Communication Card / WiFi 2 × 5PIN / Pitch 2.54mm
Parallel Interface	Not Support Parallel
ENVIRONMENTAL CONDITIONS
Operating Temperature	0°C–40°C
Storage Temperature	-15°C–60°C
Working Altitude	≤1000m without derating; above 1000m rated power will be reduced; maximum altitude 4000m
Operating Environment Humidity	Non-condensing
Noise	<50dB
MECHANICAL
Dimensions (L × W × H)	495 × 312 × 125mm
