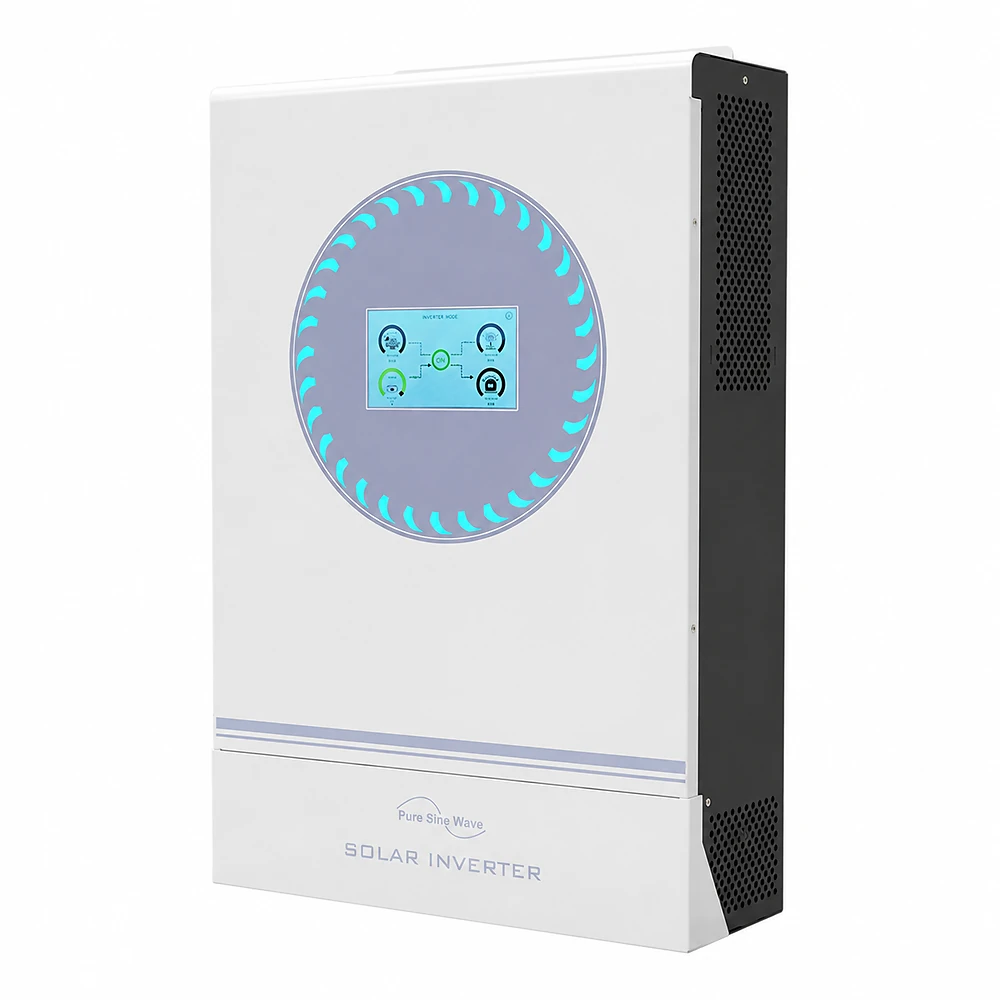

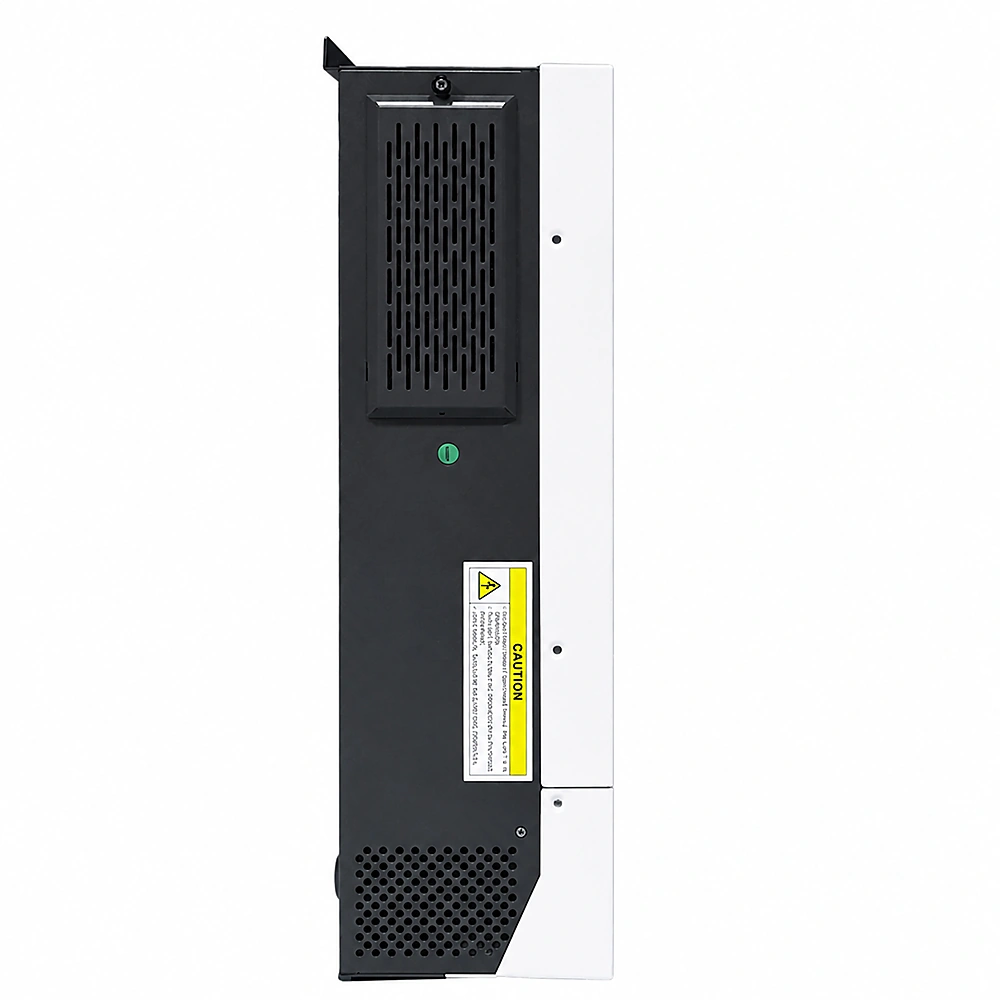

Solar Inverter BH-series | 4kW/6.2kW

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Inverter BH-series | 4kW/6.2kW
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

MODEL	BH4024SMH	BH6248SMH
AC INPUT
Input Formation	L + N + PE
AC Input	220 / 230 / 240VAC
Input Voltage Range	90–280VAC ±3V (Normal Mode) 170–280VAC ±3V (UPS Mode)
Frequency	50 / 60Hz (Adaptive)
INVERTER OUTPUT
Rated Power	4000W	6200W
Dual Output Power	4000W / 4500W	6200W / 6500W
Output Voltage (AC)	220 / 230 / 240VAC ±5%
Output Frequency	50 / 60Hz ±0.1%
Output Wave	Pure Sine Wave
Transfer Time (Adjustable)	10ms for Computer Equipment 20ms for Household Equipment
Peak Power	8000VA	12400VA
Overload Ability	Battery Mode: 11s @ 105%–150% Load 2s @ 150%–200% Load 400ms @ >200% Load
GRID / AC CHARGER
Output Voltage	220 / 230 / 240VAC ±5%
Feed-in Grid Voltage Range	195–253VAC
Grid Voltage Range	170–265VAC
Grid Frequency Range	49–51 ±1Hz / 59–61 ±1Hz
Power Factor Range	>0.99
Max Efficiency (DC/AC)	98%
BATTERY
Rated Voltage	24VDC	48VDC
Constant Charging Voltage	28.2VDC	56.4VDC
Float Charging Voltage	27VDC	54VDC
PV INPUT
PV Charging Method	MPPT
Max PV Input Power	6500W	8500W
PV Input Voltage Range	60–500VDC
Max PV Input Voltage	500VDC
Max PV Input Current	27A
CHARGING (AC + PV)
Max PV Charge Current	120A
Max AC Charge Current	100A
Max Charge Current	120A

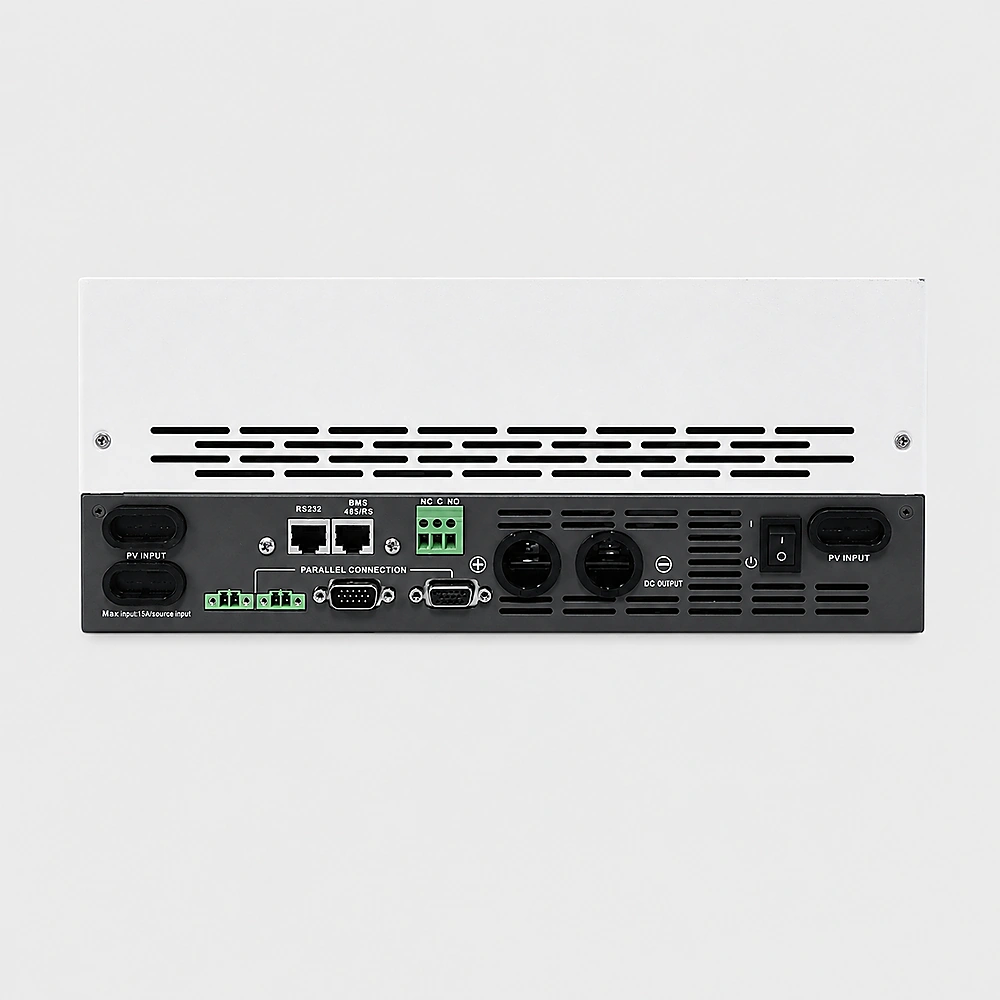

COMMUNICATION
LCD	Can display operating mode / load / input / output
RS232	5PIN / Pitch 2.54mm, Baud Rate 2400
Expansion Slot Communication Interface	Lithium Battery BMS Communication Card / WiFi 2 × 5PIN / Pitch 2.54mm
Parallel Interface	Not Support Parallel	Support Parallel
ENVIRONMENTAL
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C
Work Altitude	No More Than 1000m
Operating Environment Humidity	Non-condensing
Noise	<50dB
PHYSICAL PARAMETERS
Dimensions (L × W × H)	483 × 313 × 143mm
