VoltCrave Product Detail

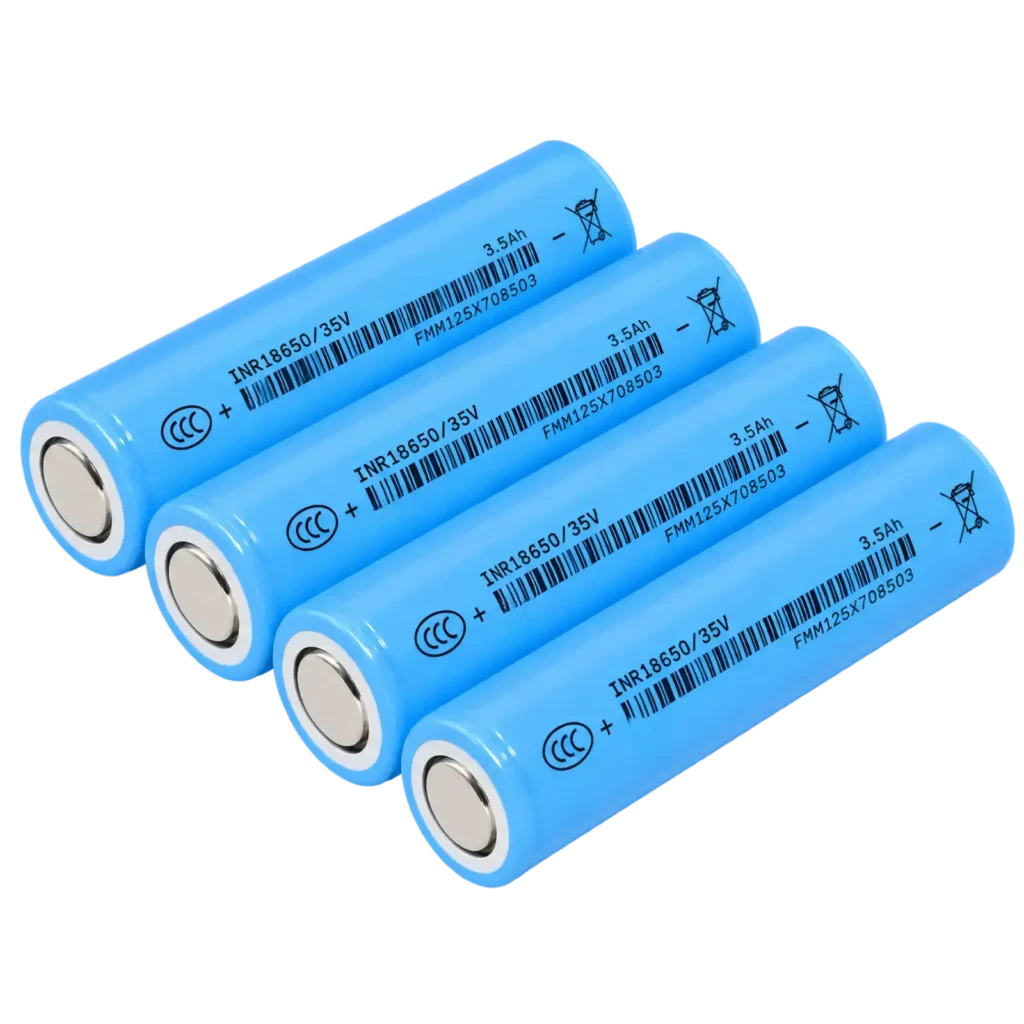

Consumer Battery 18650 3300–3500mAh Lithium-Ion Battery Cell
Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.
- Model:
- Consumer Battery 18650 3300–3500mAh
- Brand:
- VoltCrave
E-Bike & E-Scooter Battery Packs
For e-bike and e-scooter battery packs, these cells offer compact capacity for daily travel. Pack voltage, current capability and protection must be matched to the motor system.
Electric Vehicle Battery Integration
A candidate cell for engineered EV battery packs. Vehicle integration requires validation of power demand, thermal control, cycle life and the complete battery management system.
Solar Energy Storage Systems
Supports custom solar-storage packs that store daytime generation for later use. Cells require a compatible BMS, charge controls and an appropriately designed enclosure.
Portable Power Stations
Suitable for integration into portable power stations for camping, travel and mobile work. Available runtime depends on pack size, conversion efficiency and connected loads.
Electric Forklifts & Industrial Mobility
An option for custom battery packs serving electric forklifts and industrial mobility equipment. Cell configuration must be validated against duty cycles, peak current and thermal requirements.
| BASIC SPECIFICATIONS | |
| Cell Size | 18650 |
| Battery Type | Lithium-Ion |
| Capacity | 3300–3500mAh |
| Nominal Voltage | 3.6V |
| Energy | 11.88–12.775Wh |
| Energy Density | Up to 263Wh/kg |
| PERFORMANCE SPECIFICATIONS | |
| Cycle Life | 800–1000 Cycles |
| Max. Continuous Charge Rate | Up to 3C |
| Max. Continuous Discharge Rate | Up to 3C |
| Initial AC Internal Resistance | ≤30mΩ |
| TEMPERATURE SPECIFICATIONS | |
| Operating Temperature | 0°C to 45°C |
| Discharge Temperature | -20°C to 66°C |
| PHYSICAL SPECIFICATIONS | |
| Cell Dimensions | 18 × 18 × 65mm |
| Weight | 46 ± 2g to 49g |
| APPLICATION & CUSTOMIZATION | |
| Applications | E-Bikes / E-Scooters / Electric Vehicles / Power Systems / Solar Energy Storage / Portable Power Stations |
| Customization | Capacity and specifications can be customized according to customer requirements |
The product PDF has not been uploaded. Add it to the ACF field product_pdf to enable the brochure popup.
