Solar Inverter YTJ5KWh

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Output Voltage:

Reliable backup power for lighting, refrigerators, routers, TVs, computers and other essential household appliances during grid outages.

Stores solar energy during the daytime and supplies clean power at night or during peak electricity periods.

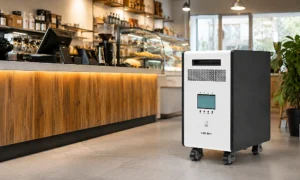

Suitable for small shops, offices and commercial spaces requiring backup power for lighting, POS systems, computers and network equipment.

Off-Grid Power Supply

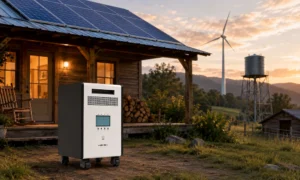

A practical energy solution for remote homes, cabins, farms and locations where grid access is limited or unstable.

Provides temporary electricity during blackouts, grid failures and other emergency situations.

Suitable for temporary workplaces, maintenance areas and other applications that require a movable integrated power source.

PARAMETER	SPECIFICATION
BASIC SPECIFICATIONS
Product Model	YTJ5KWh
Product Dimensions	320 × 485 × 520mm (W × D × H)
Weight	64kg
BATTERY SPECIFICATIONS
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Battery Voltage	51.2V
Battery Capacity	100Ah
Battery Energy	5120Wh (5.12kWh)
INVERTER SPECIFICATIONS
Inverter Rated Power	5000W
Peak Power	10000W
AC Input Voltage Range	90–280VAC
AC Input Frequency	50 / 60Hz
Inverter Output Voltage	208 / 220 / 230 / 240VAC
Output Waveform	Pure Sine Wave
Maximum AC Output Current	32A
SOLAR / PV INPUT
Solar Control Mode	MPPT
Max. PV Input Power	6500W
PV Input Voltage Range	60–450VDC
MPPT Tracking Quantity	1
MPPT Max. Input Current	27A
OUTPUT INTERFACES
AC Output	3 × AC Outlets, Max. 10A
DC Output	2 × Type-A Ports / 2 × Type-C Ports
COMMUNICATION
Communication Interfaces	RS-485 / CAN
ENVIRONMENTAL CONDITIONS
Ambient Temperature	-20°C to +55°C
Ambient Humidity	≤90% RH, Non-Condensing
