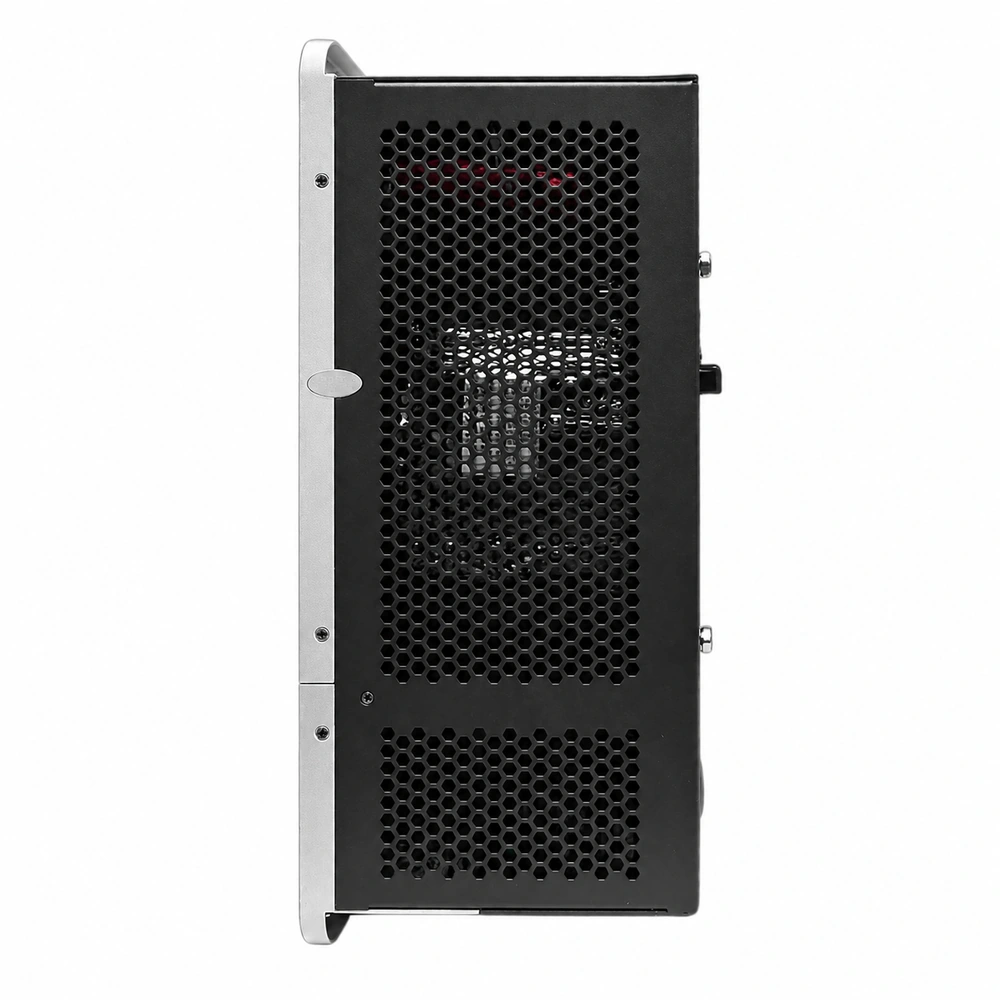

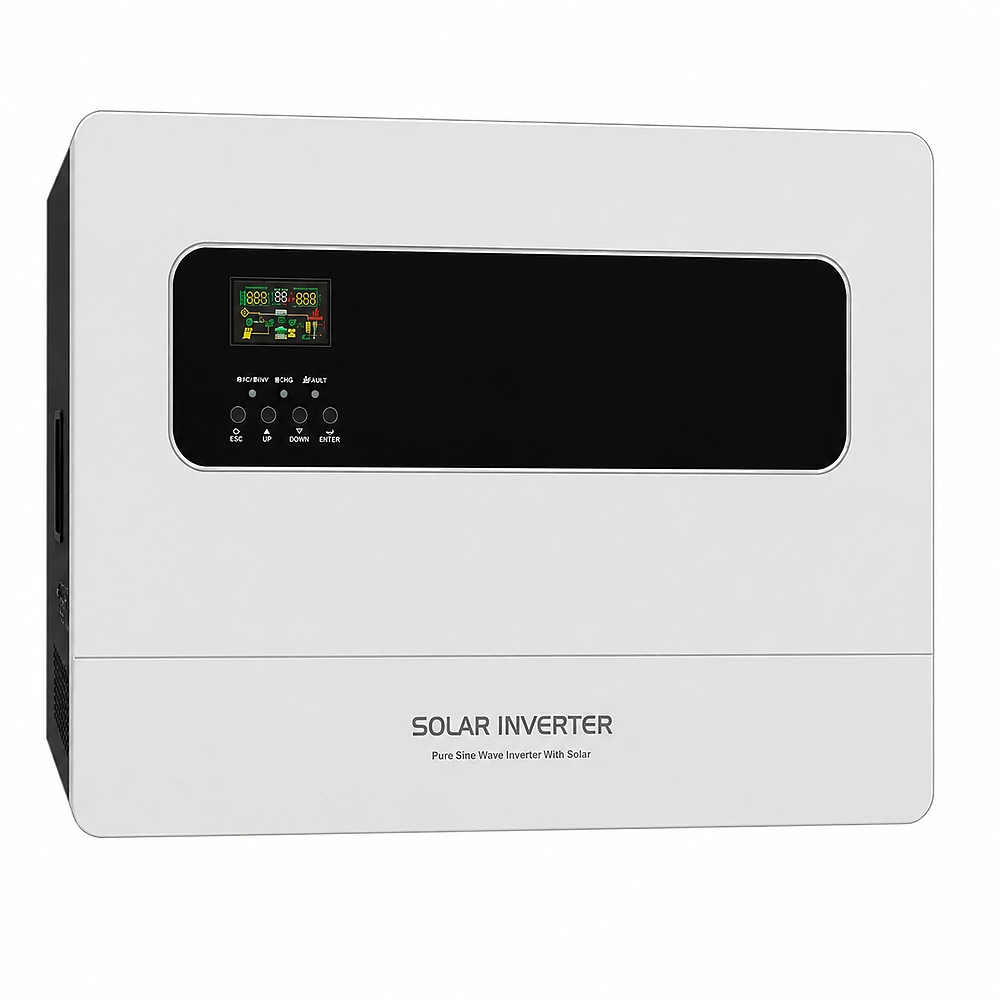

Solar Inverter JV-series | 3kW/4kW/5kW

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Inverter JV-series | 3kW/4kW/5kW
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

MODEL	JV3824AM8V	JV5048AM8V	JV6348AM8V
AC INPUT
Rated Output Power	3000W	4000W	5000W
Power Input	220VAC (Standard) / 110VAC (Customized)
Input Voltage Range	220V Model: 154–264VAC ±3V (Normal Mode) 185–264VAC ±3V (UPS Mode)110V Model: 77–132VAC ±3V (Normal Mode) 92–132VAC ±3V (UPS Mode)
Input Frequency	50 / 60Hz ±5%
OUTPUT
Output Voltage Under AC Power	The output voltage under AC power is the same as the input voltage
Output Frequency Under AC Power	The output frequency under AC power is the same as the input frequency
Output Voltage Under Inverter Mode	220VAC ±10% / 110VAC ±10%
Output Frequency Under Inverter Mode	50Hz or 60Hz ±1%
Output Waveform Under Inverter Mode	Pure Sine Wave
BATTERY & CHARGER
Battery Type	External Lead-acid Battery / Water Battery / Lithium Battery
Battery Voltage	24VDC	48VDC	48VDC
Battery Charging Voltage	27.4VDC	54.8VDC	54.8VDC
PV INPUT
Maximum PV Array Power	2700W	5400W	5400W
PV Input Voltage Range (MPPT)	30–245VDC	60–245VDC	60–245VDC
Optimal Vmp Operating Range	30–170VDC	60–170VDC	60–170VDC
Maximum PV Open-circuit Voltage	245VDC
Maximum Solar Charging Current	100A
AC CHARGER
Maximum AC Charging Current	63A (Default 50A)	83A (Default 33A)	52A (Default 42A)
EFFICIENCY & PERFORMANCE
Conversion Time	≤10ms (UPS Mode) / ≤20ms (Normal Mode)
Load Peak Ratio	Max. 3:1
Standby Power	16W	32W	32W
PROTECTION
Protection Function	Under Grid Power: Input over-current circuit breaker protection Under Inverter Operation: Overload protection, short-circuit protection, low-voltage protection, battery reverse-polarity protection (fuse)
DISPLAY & ALARM
Status Display	Color segment display with LED indicator. Displays AC voltage, AC frequency, PV voltage, PV current, output voltage, output frequency, battery voltage and load current. LED indicators display mains power, charging status, inverter status and fault status.
Audible Alert	Buzzer produces different alarm sounds according to fault codes, distinguished by long and short tones.
COMMUNICATION
BMS Communication	Standard
RS232 Communication	Standard
ENVIRONMENTAL PARAMETERS
Operating Temperature	-10°C to +50°C
Storage Temperature	-15°C to +45°C
Relative Humidity	10%–90% RH, Non-condensing
Noise	<45dB
PHYSICAL PARAMETERS
Machine Dimensions (L × W × H)	535 × 335 × 170mm
