Energy Storage Product
VoltCrave Product Detail

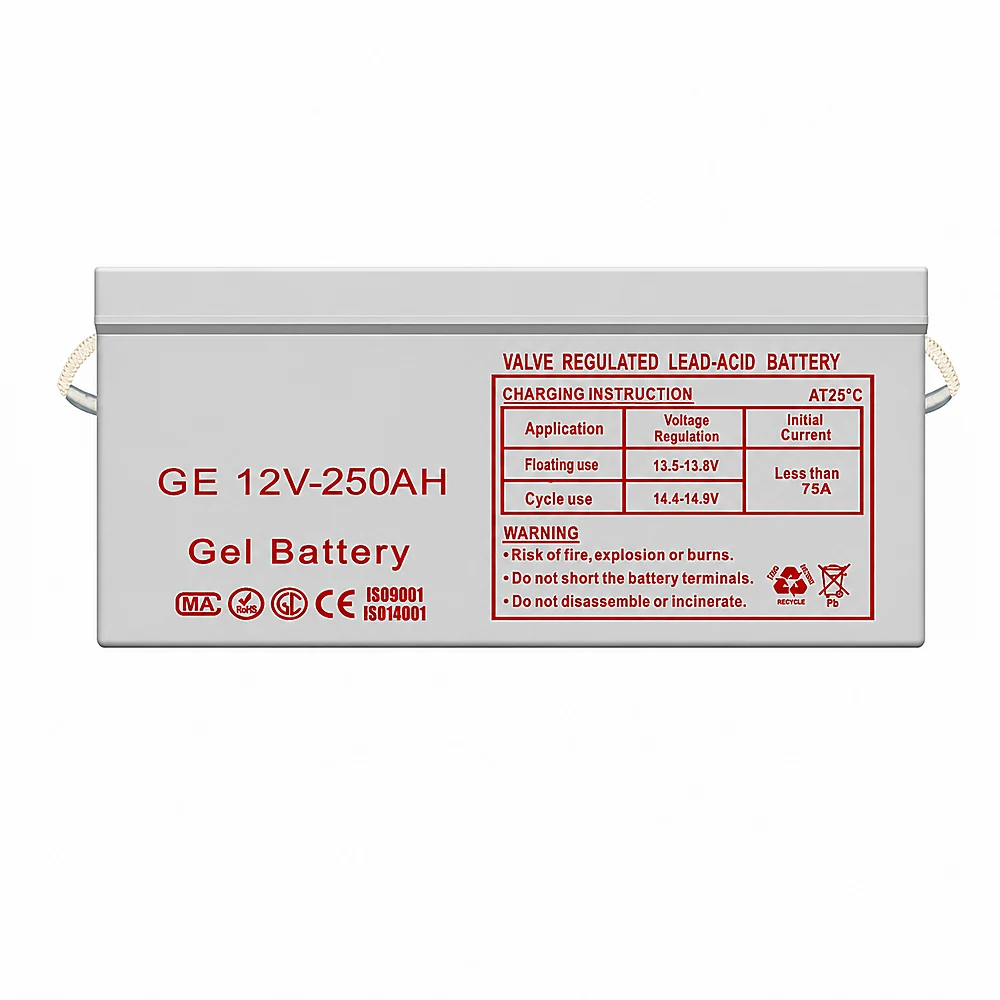

Solar Battery 12V 250AH
Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.
Product Characteristic
GE series battery can be used in wide operation temperature range. lt has activity in low temperature.Less than 2% per month stand loss means little deterioration during transport and storage.Using AGM separator,it makes lower resistance higher assembling pressure to increase deep cycle life.The gelled electrolyte gives more protection to the battery plate, and is better suitable for deep cycle discharge.
Versatile Applications for Energy & Backup Power
Suitable for photovoltaic and wind energy systems, UPS/EPS backup, street signs, communication systems, and pump systems, delivering reliable power for renewable energy, infrastructure, and backup applications.
| PARAMETER | GE250AH/12V |
|---|---|
| BASIC SPECIFICATIONS | |
| Model | GE250AH/12V |
| Battery Type | Valve Regulated Lead-Acid Gel Battery |
| Nominal Voltage | 12V |
| Rated Capacity | 250Ah |
| Electrolyte Type | Polymer Gel Electrolyte |
| Separator Type | AGM Separator |
| CHARGING PARAMETERS | |
| Charging Reference Temperature | 25°C |
| Float Charging Voltage | 13.5–13.8V |
| Cycle Charging Voltage | 14.4–14.9V |
| Initial Charging Current | <75A |
| PERFORMANCE | |
| Operating Temperature | -30°C to +60°C |
| Stand Loss / Self-discharge | <2% per Month |
| Design Life | 15 Years |
| High & Low Temperature Performance | Excellent Performance at Extreme High and Low Temperatures |
| High-temperature Water Loss | Reduced Water Loss at High Temperature |
| Deep Discharge Recovery | Enhanced Deep-discharge Recovery Capability |
| Deep Cycle Design | AGM Separator with Low Resistance and High Assembly Pressure for Improved Deep-cycle Life |
| MECHANICAL SPECIFICATIONS | |

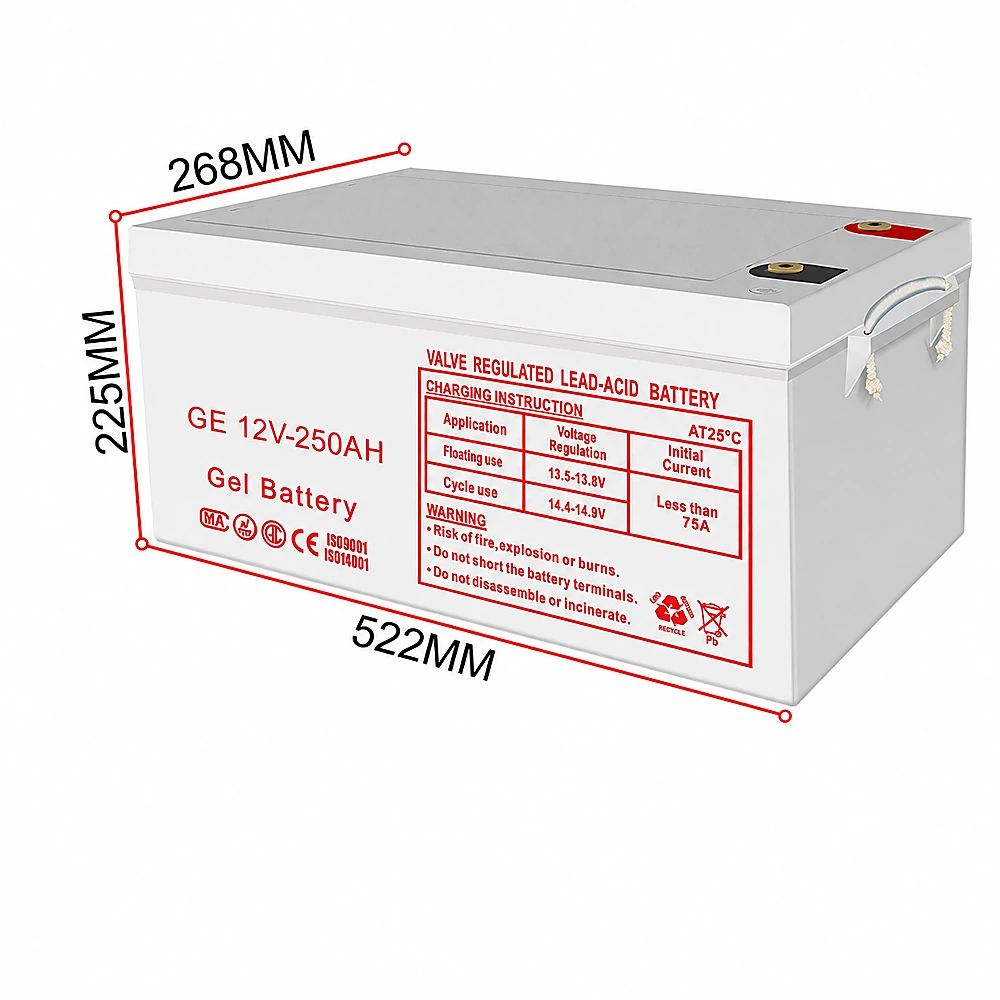

| Dimensions (L × W × H) | 522 × 268 × 225mm |

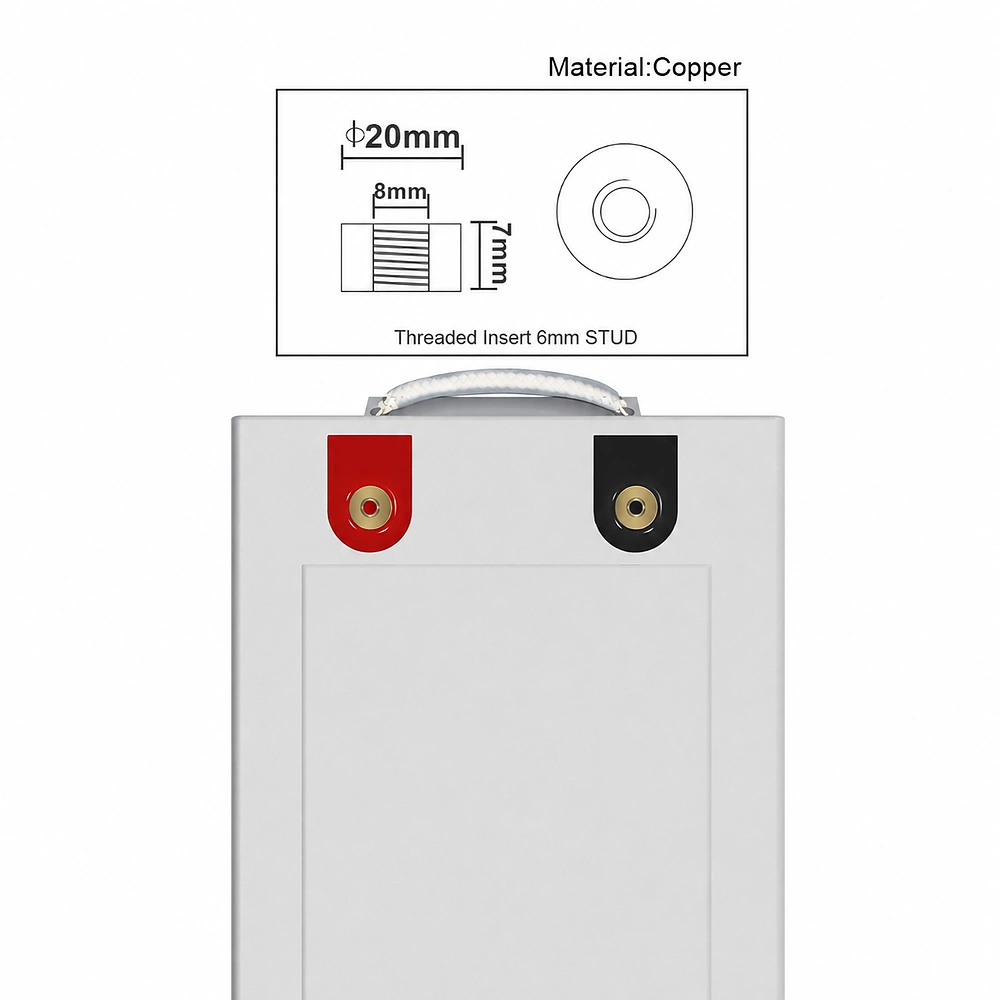

| Terminal Material | Copper |
| Terminal Type | Threaded Insert 6mm Stud |
| Terminal Outer Diameter | Ø20mm |
| Terminal Insert Depth | 8mm |
| Terminal Height | 7mm |

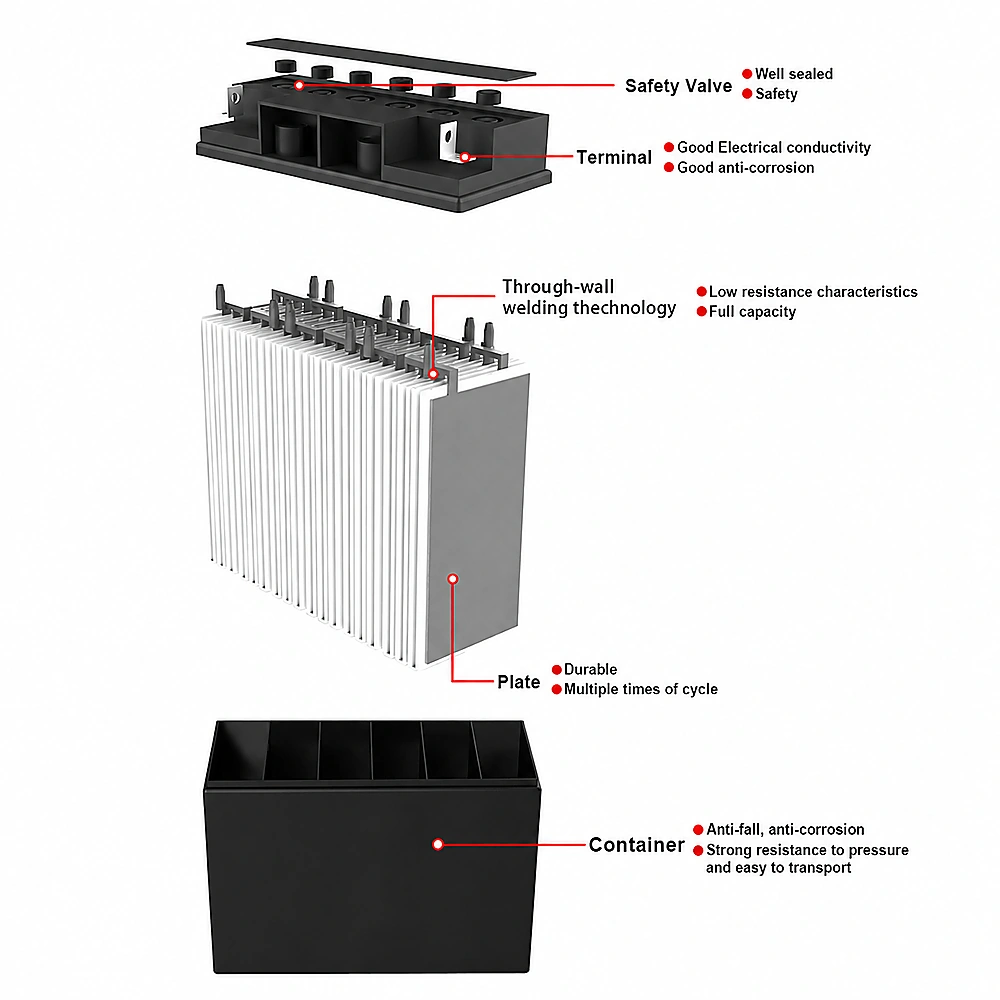

| CONSTRUCTION FEATURES | |
| Safety Valve | Well-sealed Safety Valve Design |
| Terminal Features | Good Electrical Conductivity / Anti-corrosion |
| Internal Connection | Through-wall Welding Technology |
| Connection Characteristics | Low Resistance / Full Capacity |
| Plate Features | Durable / Designed for Multiple Charge-discharge Cycles |
| Container Features | Anti-fall / Anti-corrosion / Strong Pressure Resistance / Easy to Transport |
| APPLICATIONS | |
| Typical Applications | Photovoltaic & Wind Energy / UPS & EPS / Street Signs / Communication Systems / Pump Systems |
| COMPLIANCE & STANDARDS | |
| Standards / Certifications | IEC 61427-1 / CE / RoHS / ISO 9001 / ISO 14001 / OHSAS 18001 |
