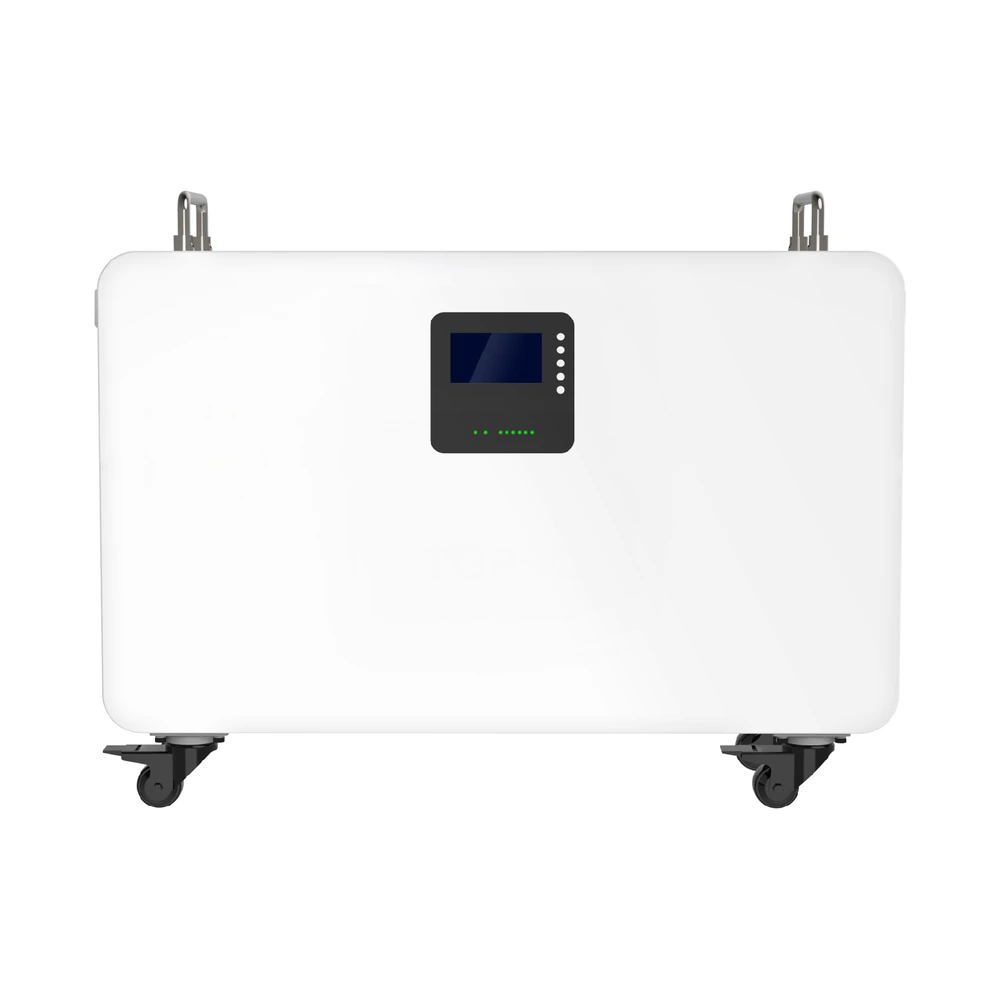

Mobile Battery Energy Storage System TG-TH Series

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Mobile Battery TG-TH Series
Brand:: VoltCrave

Talk to Our Energy Storage Team

Construction Site Power

Move dependable battery power between work zones for compatible electric tools and small equipment. The wheel-mounted design supports quick deployment where fixed power is unavailable.

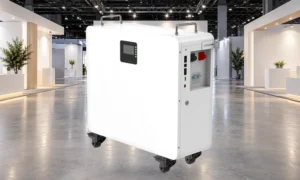

Exhibitions & Trade Shows

Provide temporary energy for booth lighting, displays and event equipment. The series offers capacity options up to 16.1 kWh for extended small-event backup; size the system to the event load.

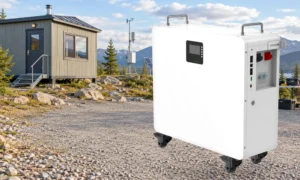

Remote Field Operations

Bring mobile energy to outdoor work, service and field stations. Integrated BMS and CAN/RS485 communication support system monitoring when paired with compatible equipment.

Residential Energy Storage Backup

Use as a mobile low-voltage battery in a properly configured home storage system. Pair with a compatible inverter and energy management system to store available energy and support selected household loads.

PARAMETER	TG-51100-M	TG-51205-M	TG-51280-M	TG-51304-M	TG-51314-M
BATTERY SPECIFICATIONS
Rated Voltage	51.2VDC
Cell Configuration	16 Cells
Rated Capacity	100Ah	205Ah	280Ah	304Ah	314Ah
Rated Energy	5.12kWh	10.5kWh	14.3kWh	15.6kWh	16.1kWh
Cycle Life	≥6000 Cycles @ 25±2°C, 0.5C/0.5C, EOL 70%
Maximum Charging Current	100A	200A	150A	150A	150A
Maximum Discharging Current	100A	200A	200A	200A	200A
Discharge Cut-Off Voltage	43.2VDC
Charge Cut-Off Voltage	57.6VDC
Cathode Material	Lithium Iron Phosphate (LiFePO4)
ENVIRONMENTAL SPECIFICATIONS
Charging Temperature	0°C to 50°C @ 60±25% RH
Discharging Temperature	-20°C to 50°C @ 60±25% RH
Storage Temperature	-20°C to 50°C @ 60±25% RH
Protection Level	IP20
MECHANICAL SPECIFICATIONS
Housing Material	Metal
Cabinet Type	Wheeled Mobile Cabinet
Product Dimensions (H × L × W)	612 × 370 × 190mm	622 × 520 × 227mm	766 × 520 × 221mm	766 × 614 × 221mm	766 × 614 × 221mm
Packing Dimensions (H × L × W)	712 × 535 × 298mm	722 × 695 × 328mm	866 × 695 × 328mm	866 × 695 × 328mm	866 × 695 × 328mm
Net Weight	55kg	92kg	122kg	122kg	122kg
Gross Weight	60kg	112kg	145kg	145kg	145kg
COMMUNICATION & MONITORING
Communication Interface	CAN / RS485 / RS232
Monitoring	Bluetooth / WLAN Optional
Certifications	UN38.3 / MSDS / CE-EMC
