What Is a High Voltage LiFePO4 Battery?

A single LiFePO4 cell operates at low voltage, yet modern homes and commercial energy systems often need much higher DC voltage to transfer significant power efficiently.

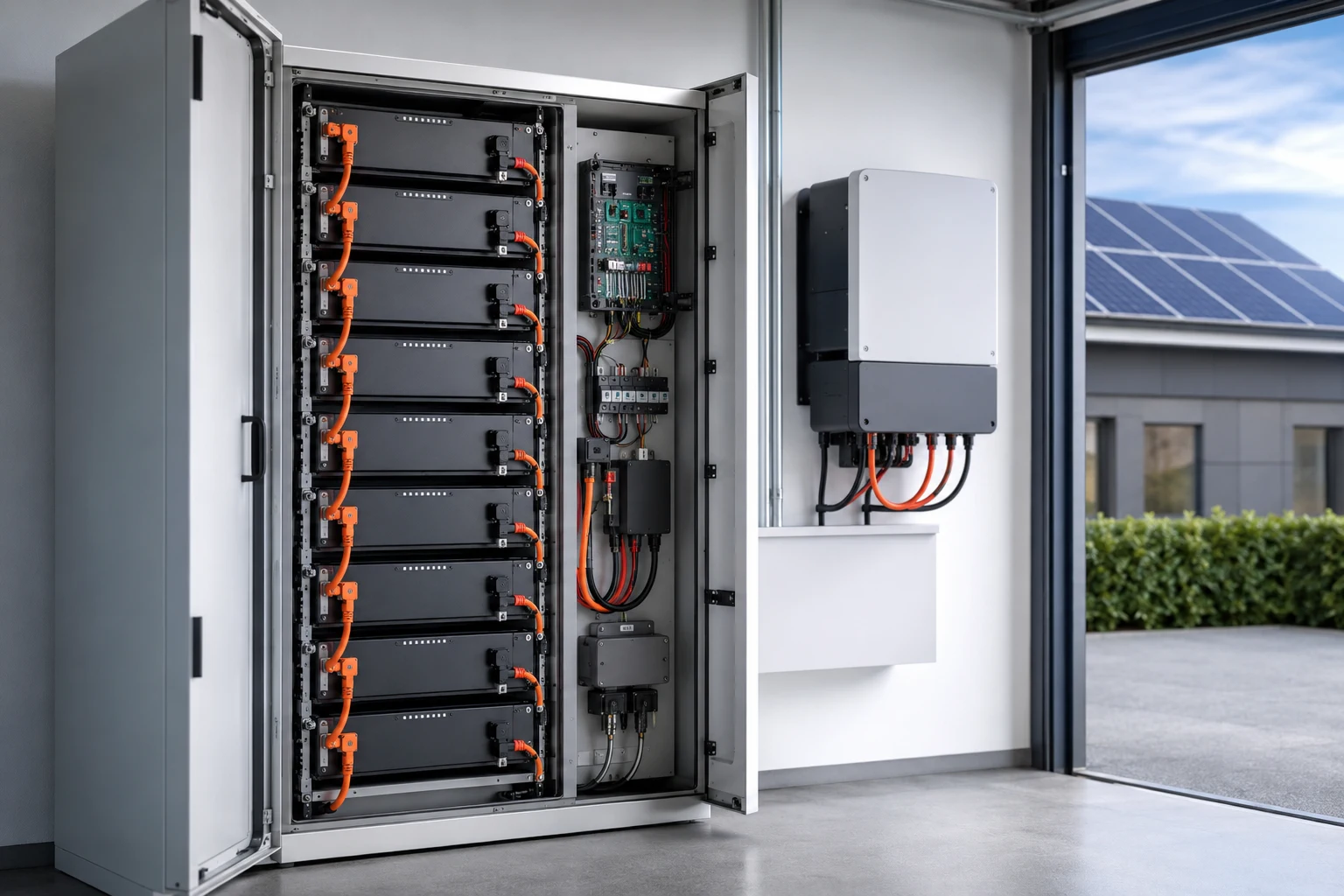

A high voltage LiFePO4 battery is an energy storage system that connects multiple lithium iron phosphate cells or battery modules in series to create a higher DC operating voltage. The chemistry remains LiFePO4; the “high voltage” comes from the pack architecture. A BMS monitors the cells and coordinates safe charging, discharging, balancing, and inverter communication.

I find this distinction essential. High-voltage LiFePO4 does not mean that an individual LFP cell suddenly operates at hundreds of volts. An individual LiFePO4 cell is typically around 3.2 V nominal; manufacturers build a high-voltage battery by combining many cells and modules in series.

How Does a High Voltage LiFePO4 Battery Work?

A high-voltage LiFePO4 battery works through the same lithium-ion electrochemistry as a lower-voltage LFP battery, but many cells are electrically combined to produce a much higher system voltage.

During charging, lithium ions move through the cell electrolyte while electrical energy is stored in the battery. During discharge, the process reverses and the battery supplies DC power. Series-connected cells or modules add their voltages together, while the BMS continuously monitors voltage, temperature, current, cell balance, and operating limits.

The Chemistry Does Not Become “High Voltage”

LiFePO4 stands for lithium iron phosphate.

Battery University lists Li-phosphate at approximately 3.2 V nominal per cell.

If I need a higher-voltage battery, I connect many cells in series.

A simplified example looks like this:

Series Cells	Approximate Nominal Voltage
1	3.2 V
16	51.2 V
32	102.4 V
64	204.8 V
100	320 V
128	409.6 V

These are simplified nominal calculations:

System voltage = number of series cells × nominal cell voltage

Real battery voltage changes with state of charge, temperature, cell design, and BMS limits.

Manufacturers also commonly build cells into modules first.

The architecture then looks like:

LiFePO4 cells

↓

Battery module

↓

Multiple modules connected in series

↓

High-voltage battery stack

↓

BMS and high-voltage protection

↓

Hybrid inverter or PCS

BYD's current Battery-Box HVS provides a practical example. One HVS stack uses two to five battery modules connected in series, producing different usable capacities depending on module count. BYD's HVM and HVL families use the same broad series-stack principle with different module configurations.

This is why I describe high-voltage LiFePO4 as an electrical architecture built around LFP chemistry, not a separate battery chemistry.

What Is the Difference Between High Voltage and Low Voltage LiFePO4 Batteries?

Both systems may use the same basic LiFePO4 chemistry, but their pack architecture, current levels, inverter requirements, and protection systems can be very different.

A low-voltage LiFePO4 battery commonly operates around 12 V, 24 V, or the 48/51.2 V class, while a high-voltage storage battery may operate at several hundred volts depending on its design. At the same power, the higher-voltage system requires less current, which can reduce resistive losses and make high-power energy transfer easier to manage.

Voltage Changes Current

The basic relationship is:

Power = Voltage × Current

Therefore:

Current = Power ÷ Voltage

Suppose I want to deliver 10 kW.

At approximately 50 V:

10,000 W ÷ 50 V = 200 A

At 200 V:

10,000 W ÷ 200 V = 50 A

At 400 V:

10,000 W ÷ 400 V = 25 A

The useful comparison is:

Battery Voltage	Approximate Current at 10 kW
50 V	200 A
100 V	100 A
200 V	50 A
400 V	25 A

These values ignore conversion losses, but the electrical principle remains valid.

This matters because resistive losses are related to:

P loss = I²R

Lower current can therefore reduce heat and losses in:

• Cables
• Busbars
• Connectors
• Fuses
• Contactors
• Switching components

Low Voltage Still Has Advantages

I do not consider high voltage automatically better.

Low-voltage LiFePO4 can be excellent for:

• Small off-grid systems
• RV applications
• Telecom
• Small backup systems
• Lower-power residential storage

It can also be simpler to service and easier to integrate with established 48 V inverter platforms.

High voltage becomes especially attractive as power requirements increase.

High Voltage Requires More Protection

The tradeoff is electrical safety and complexity.

A high-voltage battery usually requires additional design features such as:

• High-voltage contactors
• Pre-charge circuitry
• Isolation monitoring
• High-voltage measurement
• Proper creepage and clearance
• Touch-safe connectors
• More sophisticated BMS architecture

NXP's high-voltage BMS reference architecture illustrates this clearly. It separates battery management into a Battery Management Unit, Cell Monitoring Units, and a Battery Junction Box for high-voltage pack monitoring and protection.

So I see the difference as a trade:

Low voltage → higher current, simpler voltage architecture

High voltage → lower current, more demanding voltage protection

Why Are High Voltage LiFePO4 Batteries More Efficient for Energy Storage?

The main efficiency advantage comes from reducing current when moving the same amount of power.

High-voltage LiFePO4 batteries can improve system efficiency because higher DC voltage allows the same power to flow at lower current. Lower current reduces I²R losses and conductor heating. High-voltage batteries may also operate closer to the DC bus voltage used by compatible hybrid inverters and PCS equipment, which can make high-power conversion architectures more practical.

Lower Current Reduces Resistive Losses

Imagine the total resistance of a simplified DC path is:

0.01 Ω

At 200 A:

200² × 0.01 = 400 W

At 50 A:

50² × 0.01 = 25 W

At 25 A:

25² × 0.01 = 6.25 W

This is only an illustrative calculation. Real system resistance changes with conductor size, length, connections, and temperature.

But it explains the advantage.

Because current is squared in the loss equation, lowering current can make a large difference.

High Voltage Can Reduce Heavy DC Cabling

A high-current 48 V battery system delivering tens of kilowatts may require substantial copper conductors and high-current switching equipment.

A high-voltage architecture can move the same power with much less current.

That can make it easier to design:

• Battery-to-inverter cables
• DC busbars
• Connectors
• Contactors
• Fuses
• Distribution equipment

BYD explicitly uses series-connected high-voltage modules in its HVS/HVM architecture, while Fronius notes efficiency and power advantages associated with high battery module voltage in compatible storage combinations.

High Voltage Does Not Create More Energy

This is another distinction I consider important.

Suppose Battery A is:

50 V × 200 Ah = 10 kWh

Battery B is:

200 V × 50 Ah = 10 kWh

Both theoretically contain:

10 kWh

Battery B has a higher voltage.

It does not automatically store more energy.

Energy depends on both voltage and capacity:

Wh = V × Ah

The advantage of high voltage is mainly how efficiently and practically I can move power, not that high voltage magically produces additional kWh.

What Does the BMS Do in a High Voltage LiFePO4 Battery?

As battery voltage increases, monitoring the complete pack becomes more important because many individual cells must remain within safe operating limits.

The BMS in a high-voltage LiFePO4 battery monitors individual cell voltage, temperature, current, pack voltage, and operating status. It can balance cells, calculate battery state, communicate charge and discharge limits to the inverter, operate contactors, and disconnect the battery when unsafe voltage, current, temperature, or insulation conditions are detected.

Cell Voltage Matters More Than Total Voltage Alone

Suppose I have 100 series-connected LFP cells.

The total pack voltage may look normal.

However, one individual cell might be:

too high

while another is:

too low

Those two errors can partially cancel when I measure only total voltage.

That is why the BMS monitors individual cell groups.

NXP's Cell Monitoring Unit architecture supports precise voltage measurement, temperature acquisition, and cell balancing, with multiple monitoring units able to scale across larger high-voltage packs.

Cell Balancing Protects Usable Capacity

Imagine most cells are at similar SOC, but one cell reaches its upper voltage limit early.

The BMS may have to stop charging to protect that cell.

The other cells still have unused capacity.

During discharge, a weak cell can reach its lower limit first and force the complete stack to stop discharging.

Balancing helps reduce these differences.

This improves practical utilization of the complete battery.

High Voltage Needs Pack-Level Protection

The BMS also has to manage the high-voltage connection itself.

NXP's high-voltage architecture includes pack-level sensing and control through the BJB and BMU, including high-voltage and current measurements and isolation-related functions. Its reference systems scale to 400 V, 800 V, and even 1,500 V-class BESS architectures.

A typical high-voltage battery may therefore include:

Cells

↓

Cell monitoring

↓

Main BMS

↓

Pre-charge

↓

Main contactors

↓

High-voltage DC output

↓

Inverter or PCS

That is much more sophisticated than simply connecting a large number of cells together.

Why Must a High Voltage LiFePO4 Battery Match the Inverter?

Voltage compatibility is essential, but voltage alone is not enough.

A high-voltage LiFePO4 battery must match the inverter's permitted DC voltage range, charge and discharge power, communication protocol, and supported battery configuration. Modern systems commonly exchange BMS data over CAN or similar interfaces. I therefore verify the exact battery model and module configuration against the inverter manufacturer's compatibility documentation.

Operating Voltage Must Match

A high-voltage inverter has a defined battery-voltage window.

The battery also has:

• Minimum voltage
• Nominal voltage
• Maximum voltage

All three need to fit the inverter architecture.

For a modular series battery, adding another module changes the voltage.

That means one module configuration may work while another does not.

BMS Communication Is Equally Important

Modern lithium batteries often communicate data such as:

• SOC
• Maximum charge current
• Maximum discharge current
• Temperature
• Alarm status
• Battery voltage
• Battery availability

to the inverter.

The fact that both devices use a CAN connector does not guarantee compatibility.

They need the same supported communication protocol and appropriate firmware.

Victron's current high-voltage battery guidance makes this point directly: its HS19 high-voltage inverter/charger only works with supported compatible high-voltage batteries, with BMS-CAN communication strongly recommended in the documented architecture.

Compatibility Is Configuration-Specific

I therefore check:

Compatibility Item	What I Verify
Battery voltage	Entire operating window fits inverter
Module count	Exact stack size is permitted
BMS protocol	Supported communication is available
Firmware	Approved versions are installed
Charge power	Inverter does not exceed battery limits
Discharge power	Battery can support inverter load
Backup function	Combination supports required island operation
Parallel operation	Manufacturer allows multiple stacks

This is particularly important with high-voltage systems because I cannot safely treat them as generic drop-in batteries.

Where Are High Voltage LiFePO4 Batteries Used?

High-voltage LFP batteries are particularly useful where power demand is large enough that a low-voltage architecture would require very high DC current.

High-voltage LiFePO4 batteries are commonly used in residential solar storage, whole-home backup, commercial BESS, industrial energy storage, microgrids, renewable-energy integration, and other applications requiring relatively high charge or discharge power. Their modular architecture can also make it possible to expand energy capacity as load requirements increase.

Home Energy Storage

Modern homes increasingly add:

• Solar PV
• Heat pumps
• EV charging
• Electric cooking
• Whole-home backup

These loads can require significant inverter power.

A high-voltage battery can reduce the DC current required to provide that power.

BYD's current Battery-Box range includes high-voltage LFP configurations specifically designed for residential and broader storage applications. Its HVS, HVM, and HVL products use series-connected modules to build different battery capacities.

Commercial Energy Storage

Commercial facilities often require much more power.

A BESS might need to provide:

50 kW

100 kW

500 kW

or more.

Trying to provide 100 kW at approximately 50 V would theoretically require:

100,000 W ÷ 50 V = 2,000 A

At 500 V:

100,000 W ÷ 500 V = 200 A

Again, these simplified numbers ignore efficiency, but they show why increasing DC voltage becomes attractive as system power grows.

Solar and Backup

High-voltage LiFePO4 batteries can also store solar electricity during the day.

A hybrid system may operate like this:

PV → inverter → loads

PV → battery

Battery → loads

Grid → battery, where permitted

During an outage, a backup-capable inverter can use the battery to power selected or whole-home loads if the complete system supports island operation.

The battery chemistry stores the energy.

The inverter determines how that energy interacts with AC loads and the grid.

Is a High Voltage LiFePO4 Battery Better Than a 48V Battery?

I do not choose based on voltage alone because the best architecture depends on power, system size, inverter type, installation cost, expansion plans, and service requirements.

A high-voltage LiFePO4 battery is often better for higher-power residential and commercial systems because it can transfer power at lower current. A 48 V LiFePO4 system can still be an excellent choice for smaller backup and off-grid installations because its architecture is mature, widely supported, and relatively straightforward.

When I Prefer High Voltage

I tend to favor high voltage when I need:

• 10 kW or more of significant continuous power
• Three-phase hybrid inverters
• Whole-home electrification
• Commercial ESS
• Lower DC current
• Modular series stacks
• Compact high-power architecture

The exact threshold is not universal.

A well-designed 48 V system can support substantial power.

But current becomes increasingly difficult to manage as kW rises.

When I Prefer Low Voltage

Low voltage still makes sense for:

• Small homes
• Cabins
• RVs
• Telecom
• Smaller off-grid systems
• Basic backup
• Existing 48 V equipment

Low-voltage ecosystems can also offer broad compatibility with inverters and battery modules.

BYD's own product family demonstrates that both architectures have valid applications: it offers high-voltage HVS/HVM/HVL solutions as well as low-voltage LVS and LVL products.

My Comparison

Feature	48V-Class LiFePO4	High-Voltage LiFePO4
Current at same power	Higher	Lower
High-power cable demands	Greater	Lower
Series cell/module count	Lower	Higher
HV protection complexity	Lower	Higher
BMS architecture	Simpler	More complex
High-power scalability	Moderate	Strong
Small-system suitability	Excellent	Often unnecessary
Commercial ESS suitability	Possible	Often preferred
Inverter compatibility	Must match 48V class	Must match exact HV range

So I never ask simply:

“Which voltage is better?”

I ask:

“Which voltage architecture best matches the required power and inverter?”

My Insights: What Is a High Voltage LiFePO4 Battery?

My main insight is that the term becomes much easier to understand once I separate battery chemistry from battery architecture.

A high voltage LiFePO4 battery is not a special high-voltage version of an individual LFP cell. It is a system that combines many low-voltage lithium iron phosphate cells or modules in series, creating a higher DC pack voltage. Its practical advantages come from lower current at high power, modular scaling, BMS control, and efficient integration with compatible high-voltage inverters.

My First Insight: “High Voltage” and “LiFePO4” Describe Different Things

LiFePO4 tells me the chemistry.

High voltage tells me how the battery pack is electrically arranged.

That distinction prevents a lot of confusion.

A 3.2 V-class LFP cell can be used inside:

• A 12.8 V battery
• A 25.6 V battery
• A 51.2 V battery
• A 200 V battery
• A 400 V battery

depending on how many cells are connected in series.

The chemistry can remain essentially the same while the system architecture changes dramatically.

My Second Insight: Higher Voltage Mainly Solves a Current Problem

The advantage becomes clear from:

I = P ÷ V

If I increase voltage, I need less current for the same power.

This matters especially when power becomes large.

At 20 kW:

50 V → approximately 400 A

400 V → approximately 50 A

That affects cables, contactors, fuses, busbars, connectors, and power-conversion design.

So I do not describe high voltage as creating more power by itself.

It makes high power easier to transfer efficiently.

My Third Insight: High-Voltage Architecture Requires a Better-Controlled Battery

The more cells I connect in series, the more important individual cell monitoring becomes.

One weak cell can limit an entire series string.

That is why high-voltage BMS architectures include dedicated cell monitors, pack controllers, contactor control, high-voltage sensing, and isolation-related protection.

NXP's current architecture separates these responsibilities among CMU, BMU, and BJB functions.

This shows me that a high-voltage battery is a complete electrical system, not simply a stack of LFP modules.

My Fourth Insight: Inverter Compatibility Can Matter More Than the Battery's Headline Specifications

A 15 kWh battery may look perfect.

But if its operating voltage or BMS protocol does not match my inverter, its capacity is irrelevant.

This is why I verify:

exact inverter model

*

exact battery model

*

exact module count

*

supported firmware

before procurement.

Victron's current high-voltage guidance explicitly restricts its HS19 inverter/charger to supported compatible HV battery systems.

BYD's modular architecture provides another example of why configuration matters: changing the number of series modules changes the battery's usable capacity and voltage characteristics.

My Fifth Insight: What Is a High Voltage LiFePO4 Battery in Practical Terms?

This is the core question behind What Is a High Voltage LiFePO4 Battery?

My practical definition is:

It is a modular lithium iron phosphate energy-storage system that connects enough LFP cells or battery modules in series to create the higher DC voltage required by a compatible inverter or PCS.

The complete operating chain looks like:

LiFePO4 cells

↓

Battery modules

↓

Series-connected high-voltage stack

↓

Cell monitoring and balancing

↓

Main BMS

↓

Pre-charge and contactors

↓

High-voltage DC connection

↓

Hybrid inverter or PCS

↓

Home, commercial loads, or grid

That definition also explains why high-voltage LiFePO4 batteries are increasingly relevant to modern energy storage.

They combine the cycle and thermal characteristics of LFP chemistry with an electrical architecture designed to transfer significant power without requiring the extremely large DC currents that a lower-voltage battery would need.

However, I do not select one simply because it says high voltage.

I still evaluate:

1. Usable battery capacity in kWh
2. Continuous and peak power
3. Minimum and maximum battery voltage
4. Exact inverter compatibility
5. BMS communication
6. Series module limits
7. Parallel expansion rules
8. Temperature range
9. Safety certification
10. Warranty and throughput conditions

If all these factors fit the application, a high-voltage LiFePO4 battery can be an excellent foundation for residential, commercial, and industrial energy storage.

The key idea remains simple:

LiFePO4 defines what the cells are made from. High voltage defines how those cells are arranged and managed as a complete battery system.

Conclusion

A high voltage LiFePO4 battery connects LFP cells or modules in series to create higher DC voltage, reducing current at high power while relying on advanced BMS protection and compatible inverter integration.
