Portable Power Station M9

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Portable Power Station M9
Brand:: VoltCrave

Output Voltage:

Rated Power:

Talk to Our Energy Storage Team

Portable Power for Outdoor Adventures

Designed for camping, travel, and outdoor activities, this portable power station combines a compact carry-handle design with high-capacity energy storage. With up to 1200W output and 1008Wh capacity, it provides dependable power for multiple devices while remaining convenient to transport at approximately 12 kg.

PARAMETER	SPECIFICATION
AC OUTPUT
Output Voltage	100–120VAC / 220–240VAC
Output Waveform	Pure Sine Wave
Rated Power	1200W
Power Protection / Peak Power	1350W / Peak 2000W (1ms)
Frequency Range	50Hz / 60Hz ±3Hz
Conversion Efficiency	>92%
Short Circuit Protection	Yes; Automatically Recovers After the Short Circuit Is Removed
Temperature Protection	Over-temperature Protection Above 65°C
AC Output Operation	Press and hold the AC button for approximately 1–2 seconds to switch the AC output on or off. The AC icon will be displayed on the screen accordingly.
CHARGING FUNCTION
AC Charging Input Voltage	100–140VAC / 200–240VAC
Max. AC Charging Power	300W
AC Charging Time	Approx. 4 Hours
Car Charging Interface	XT60
Car Charging Input	20V / 10A
Car Charging Power	200W
Car Charging Time	Approx. 6.5 Hours
Solar Charging Connection	Standard MC4 to XT60 Cable
Solar Charging Controller	Built-in MPPT
Solar Input Voltage	12–48VDC
Max. Solar Charging Power	300W
Solar Charging Time	Approx. 4 Hours
Charging Temperature	0°C to 45°C
BATTERY CHARACTERISTICS
Battery Type	Lithium Iron Phosphate Battery (LiFePO4)
Battery Capacity	315,000mAh
Battery Energy	1008Wh
BATTERY MANAGEMENT SYSTEM (BMS)
Protection Functions	Overcharge Protection / Over-discharge Protection / Temperature Protection / Overcurrent Protection / Short Circuit Protection / SOC Calculation
DIMENSIONS & WEIGHT
Net Weight	12kg

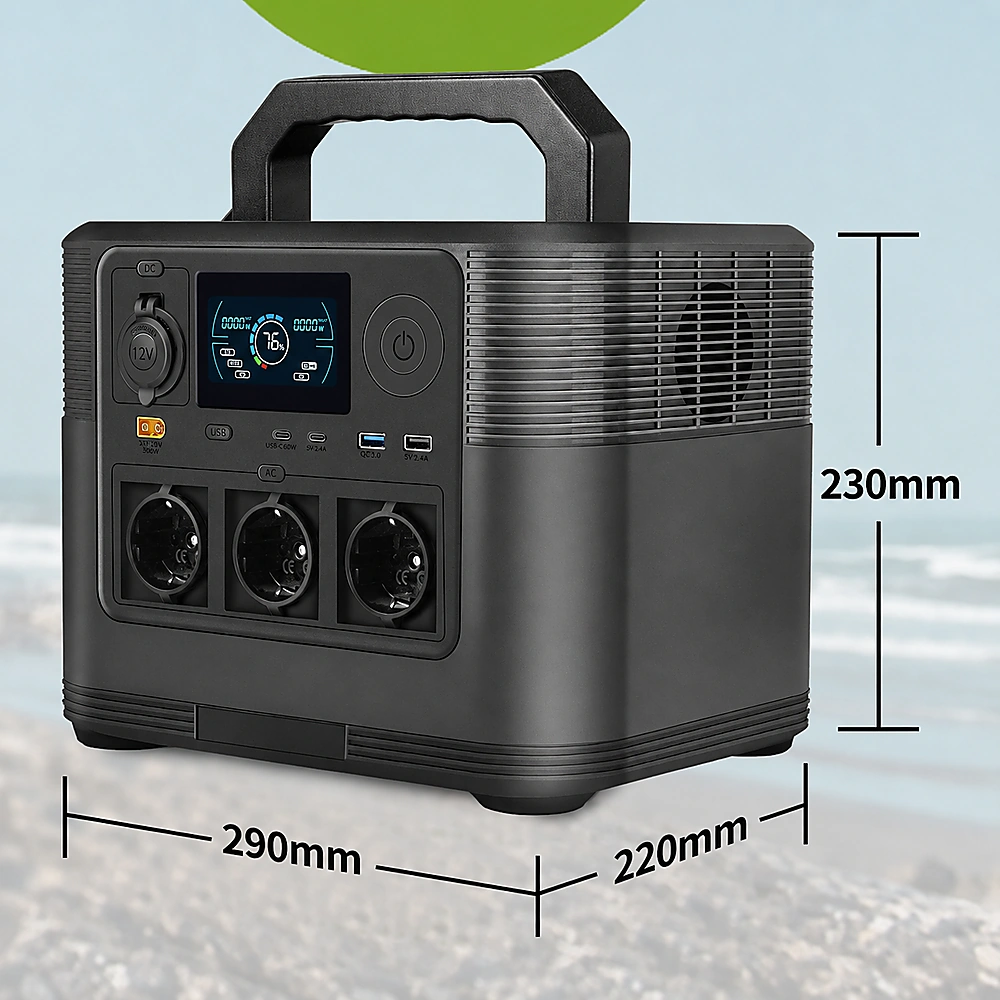

Product Dimensions	290 × 220 × 230mm
Gross Weight	14.6kg
Package Dimensions	400 × 330 × 355mm
