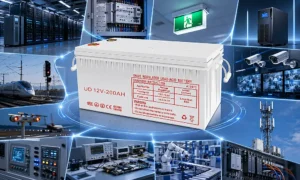

Solar Battery UD 12V 200AH

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Solar Battery UD 12V 200AH
Brand:: VoltCrave

Output Voltage:

Talk to Our Energy Storage Team

Reliable Power for Critical & Industrial Applications

Suitable for UPS/EPS, emergency lighting, backup power, railway and aircraft signaling, security systems, communication equipment, DC power supply, electronic devices, and automatic control systems, providing stable and dependable power for a wide range of critical applications.

PARAMETER	UD200AH/12V
BASIC SPECIFICATIONS
Model	UD200AH/12V
Battery Type	Lead Acid Battery
Nominal Voltage	12V
Nominal Capacity (20HR)	200Ah
Terminal	T11
Container Material	ABS
CAPACITY PERFORMANCE
20HR Capacity	208Ah / 10.4A 20hr, 1.80V/cell, 25°C (77°F)
10HR Capacity	200Ah / 20.0A 10hr, 1.80V/cell, 25°C (77°F)
5HR Capacity	172Ah / 34.4A 5hr, 1.75V/cell, 25°C (77°F)
3HR Capacity	156Ah / 52.0A 3hr, 1.75V/cell, 25°C (77°F)
1HR Capacity	122Ah / 122A 1hr, 1.60V/cell, 25°C (77°F)
DISCHARGE PERFORMANCE
Maximum Discharge Current	2000A (5 Seconds)
Internal Resistance	Approx. 2.7mΩ
CHARGING PARAMETERS
Cycle Use – Initial Charging Current	Less Than 60A
Cycle Use – Charging Voltage	14.4V–15.0V at 25°C (77°F)
Cycle Use – Temperature Coefficient	-30mV/°C
Standby Use – Initial Charging Current	No Limit
Standby Use – Charging Voltage	13.5V–13.8V at 25°C (77°F)
Standby Use – Temperature Coefficient	-20mV/°C
TEMPERATURE CONDITIONS
Discharge Temperature	-15°C to +50°C (5°F to 122°F)
Charge Temperature	0°C to +40°C (32°F to 104°F)
Storage Temperature	-15°C to +40°C (5°F to 104°F)
Nominal Operating Temperature	25 ±3°C (77 ±5°F)
CAPACITY VS. TEMPERATURE
Capacity at 40°C (104°F)	103%
Capacity at 25°C (77°F)	100%
Capacity at 0°C (32°F)	86%
STORAGE & SELF-DISCHARGE
Storage / Self-discharge	Battery may be stored for up to 6 months at 25°C (77°F) before a freshening charge is required. At higher temperatures, the recharge interval should be shorter.
MECHANICAL SPECIFICATIONS
Length	522 ±3mm (20.55in)
Width	240 ±2mm (9.45in)
Container Height	221 ±2mm (8.70in)
Total Height (with Terminal)	226 ±2mm (8.90in)
Approx. Weight	Approx. 54.8kg (120.81lbs)
APPLICATIONS
Typical Applications	All-purpose Applications / Emergency Lighting / Uninterruptible Power Supply (UPS) / Electric Power System (EPS) / Emergency Backup Power / Railway & Aircraft Signals / Alarm & Security Systems / Electronic Equipment / Communication Power Supply / DC Power Supply / Automatic Control Systems
