All-in-One Liquid Cool 241kWh Industrial & Commercial Air-Cooled Energy Storage Cabinet

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: Air-Cooled BESS 241kWh
Brand:: VoltCrave

Talk to Our Energy Storage Team

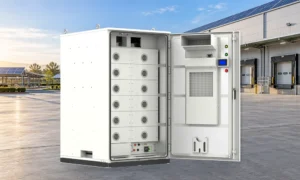

Solar Self-Consumption & Energy Shifting

Capture surplus rooftop PV and shift it to later operating hours. Integrated MPPT supports PV charging; array sizing and energy scheduling should be matched to the site's load and configuration.

Factory Peak Shaving & Load Shifting

Schedule charging during lower-demand periods and discharge during selected peaks to help reduce grid demand. Results depend on the facility load profile, tariff, and energy-management settings.

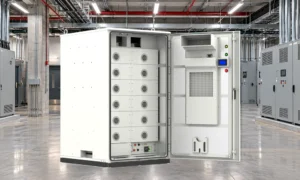

Commercial Microgrid & Critical-Load Support

Use the integrated PCS and STS as part of a configured commercial microgrid to coordinate storage and transfer power to selected loads. Backup availability depends on system design, load priorities, and local electrical requirements.

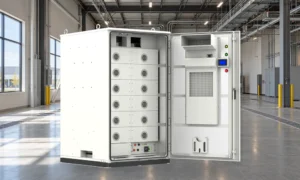

Modular Expansion for Growing Facilities

Parallel operation lets project teams add capacity as a factory, warehouse, or campus grows. A coordinated energy-management strategy can manage PV generation, storage, and site loads across the installation.

PARAMETER	SPECIFICATION
BASIC SPECIFICATIONS
Model	TG-eBank-241F
Product Type	Industrial & Commercial Air-Cooled Energy Storage Cabinet
Rated Battery Energy	241kWh
Rated Charge / Discharge Power	105kW
System Design	Integrated Energy Storage Cabinet
BATTERY SPECIFICATIONS
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Rated Battery Voltage	768VDC
Battery Voltage Range	600–876VDC
Rated Battery Energy	241kWh
Maximum Charging Current	157A
Battery Cycle Life	6000 Cycles @ 70% End of Life (EOL)
PHOTOVOLTAIC INPUT (OPTIONAL)
Rated PV Power	120kW
Rated PV Input Voltage	600VDC
Maximum PV Input Voltage	1000VDC
MPPT Voltage Range	150–950VDC
PV Input Current	45A × 8
AC INPUT & OUTPUT SPECIFICATIONS
Rated AC Input / Output Apparent Power	105kVA
Maximum AC Input / Output Apparent Power	116kVA
Overload Capacity	1.2 × Rated Power for 1 Minute
Maximum Efficiency	98.5%
AC Connection / Voltage	3L / N / PE; 230/400VAC
Rated Frequency	50 / 60Hz
Total Harmonic Current Distortion (THDi)	≤3%
Power Factor Range	0.8 Leading to 0.8 Lagging
SYSTEM SPECIFICATIONS
Product Dimensions (W × D × H)	1850 × 1355 × 2150mm
Approximate Weight	2350kg
STS / Isolation Transformer	125kVA (Configuration-Dependent)
Design Life	10+ Years
Expansion Capability	Supports Parallel Operation
Enclosure Protection Rating	IP54
Cooling Method	Air Cooling
OPERATION & CONTROL
Energy Management	Cloud-Based Energy Management
Remote Maintenance	Remote Updates and Firmware Upgrades
System Monitoring	Intelligent Real-Time Monitoring
System Expansion	Multi-Unit Parallel Operation
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature	-20°C to 55°C
Operating Humidity	10%–95% RH
Operating Altitude	Below 2000m
