Energy Storage Product
VoltCrave Product Detail

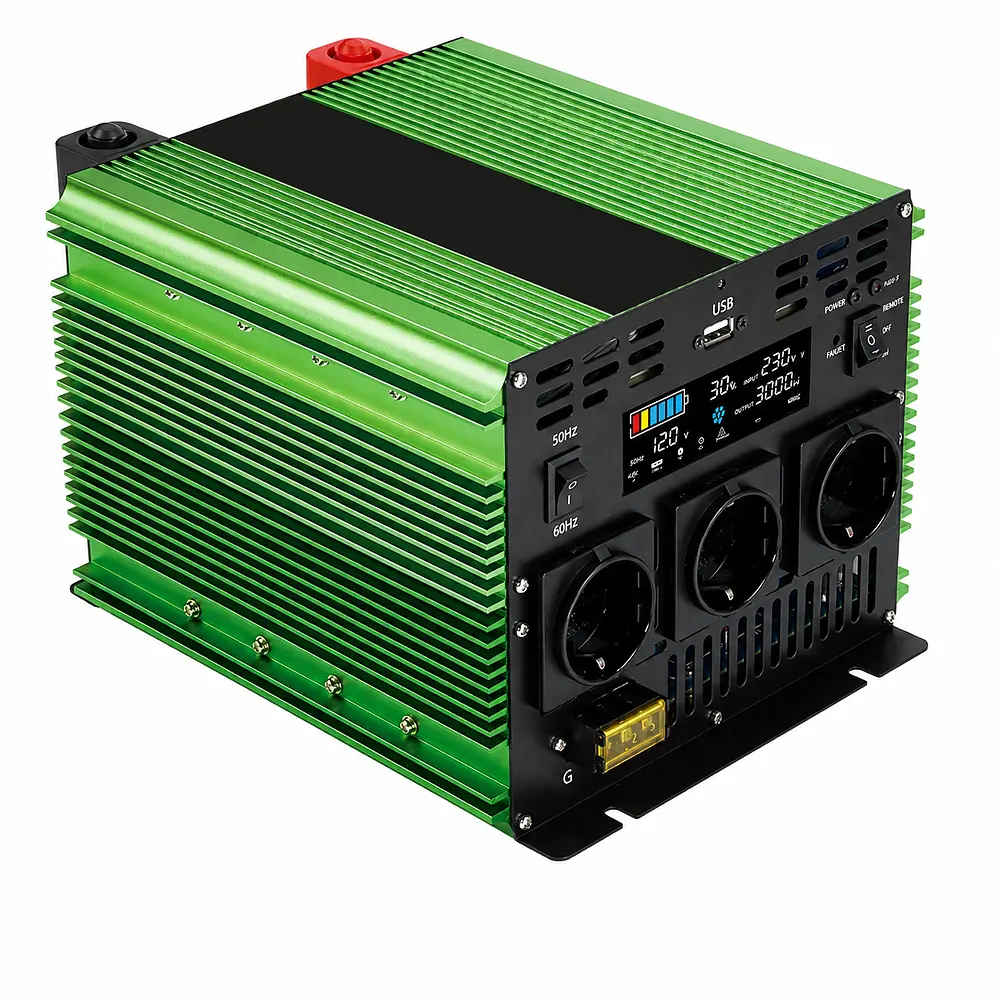

Pure Sine Wave Inverter 3000W-5000W
Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.
- Model:
- Pure Sine Wave Inverter 3000W-5000W
- Brand:
- VoltCrave
Output Voltage:

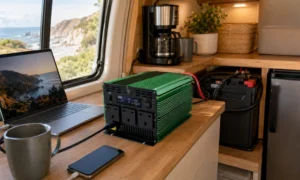

RV & Camper Van Power
Provides stable pure sine wave AC power for RVs and camper vans, supporting laptops, coffee makers, mobile devices and other travel appliances from a connected battery system.

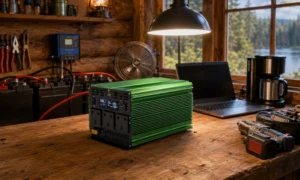

Off-Grid Cabin & Workshop Power
Works with battery-based off-grid systems to provide reliable AC power for cabins and workshops, supporting lighting, laptops, fans, small appliances and light-duty tools.

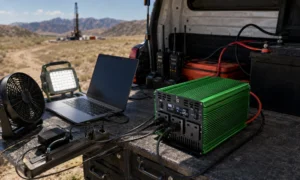

Remote Mobile Workstation Power
Provides dependable mobile power for remote work and field operations, supporting laptops, work lights, chargers, fans and communication equipment in off-grid environments.
Home Emergency Backup Power
Supplies temporary backup electricity during power outages for essential household devices such as lamps, Wi-Fi routers, laptops, fans and mobile device charging.
| PARAMETER | 3000W | 4000W | 5000W |
|---|---|---|---|
| POWER SPECIFICATIONS | |||
| Continuous Power | 3000W | 4000W | 5000W |
| Peak Power | 6000W | 8000W | 10000W |
| ELECTRICAL SPECIFICATIONS | |||
| Input Voltage | 12V / 24V | 12V / 24V | 12V / 24V |
| Output Voltage | 110V / 220V | 110V / 220V | 110V / 220V |
| Output Waveform | Pure Sine Wave | ||
| Frequency | 50Hz / 60Hz | ||
| Frequency Adjustment | 50Hz / 60Hz Adjustable | ||
| Efficiency | >90% | ||
| No-Load Current | 0.8A | ||
| DIMENSIONS & WEIGHT | |||
| Product Dimensions | 245 × 205 × 170mm | 320 × 205 × 170mm | 350 × 205 × 170mm |
| Net Weight | 4.8kg | 6.3kg | 7kg |
| DISPLAY & CONTROL | |||
| Display | Intelligent LCD Display | ||
| Real-Time Display Information | Input Voltage / Output Voltage / Battery Capacity / Load Status | ||
| LED Indicator | Available | ||
| Remote Control | Supported | ||
| ON / OFF Switch | Available | ||
| INTERFACES & CONNECTIONS | |||
| Output Socket Options | US / UK / AU / EU / Universal | ||
| USB Port | Available | ||
| External Wiring Port | Available | ||
| DC Terminals | Positive Port / Negative Port | ||
| COOLING & CONSTRUCTION | |||
| Housing Material | Aluminum Alloy Housing | ||
| Cooling Method | Built-In Cooling Fan | ||
| Available Colors | Green / Black | ||
| PROTECTION FUNCTIONS | |||
| Low Voltage Protection | Supported | ||
| High Voltage Protection | Supported | ||
| Overtemperature Protection | Supported | ||
| Overload Protection | Supported | ||
| Short Circuit Protection | Supported | ||
| Reverse Connection Protection | Supported | ||
| LCD ERROR CODES | |||
| E-1 | Low Voltage Protection | ||
| E-2 | High Voltage Protection | ||
| E-3 | Overtemperature Protection | ||
| E-4 | Overload Protection | ||
| E-5 | Short Circuit Protection | ||
| E-6 | Repeated Fault Shutdown – Restart Required | ||
| CERTIFICATION & CUSTOMIZATION | |||
| Certifications Listed | CE / FCC / PSE / RoHS / UKCA / KC | ||
| Customization | ODM / Socket Options / USB Options | ||
