VoltCrave Product Detail

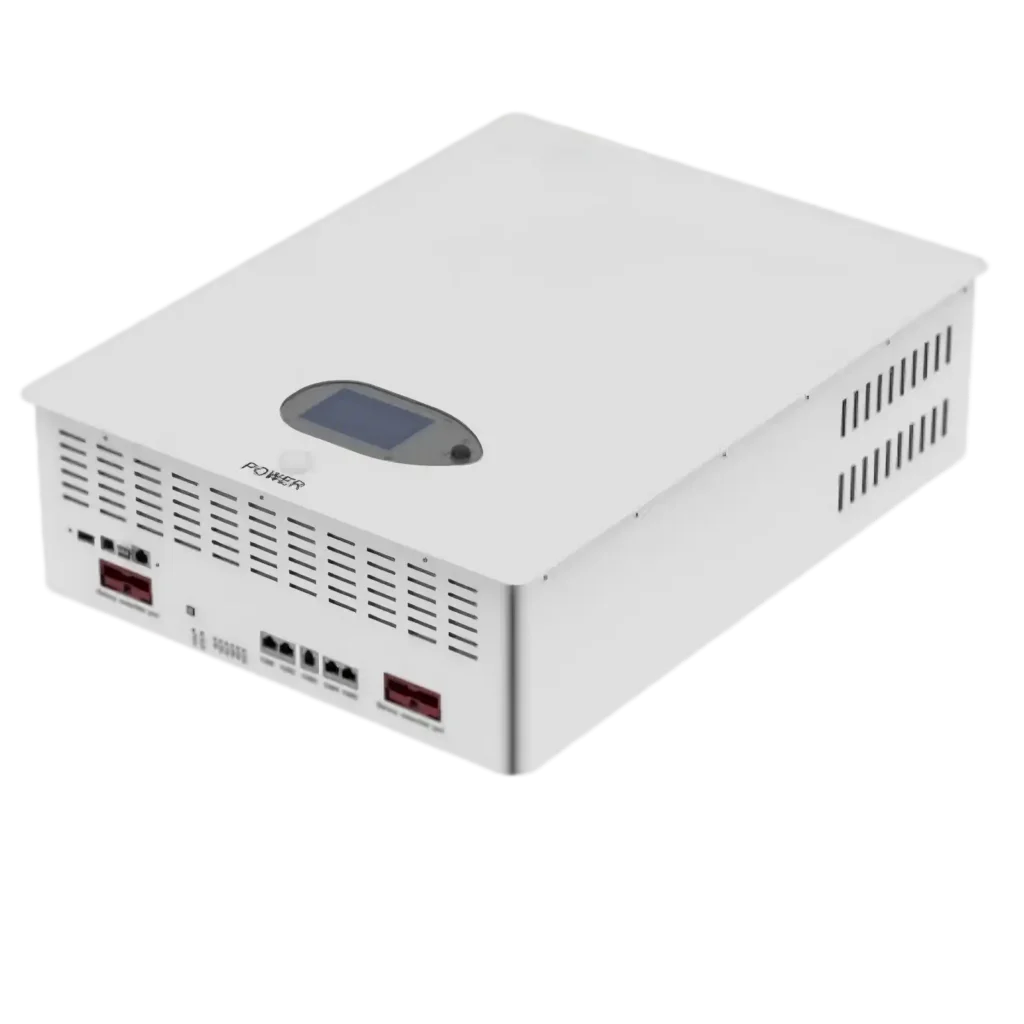

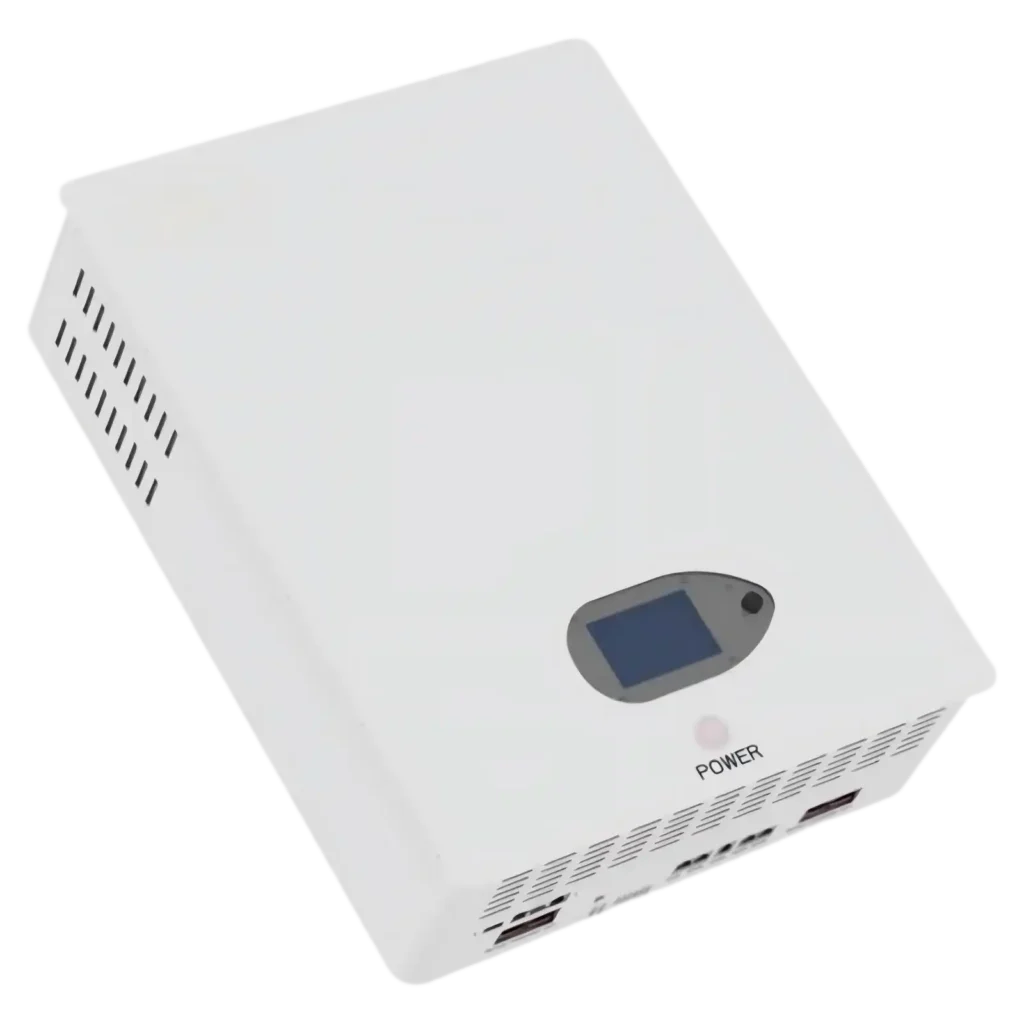

Power Wall 10KW 10.24KWh 51.2V 200Ah LiFePO4 Powerwall
Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.
- Model:
- Power Wall 10KW 10.24KWh 51.2V 200Ah
- Brand:
- VoltCrave
Solar Self-Consumption
Store excess rooftop solar energy during the day and use it later at home, helping make more of your on-site PV generation available after sunset.
Automatic Home Backup
When utility power is interrupted, the system can automatically switch to stored battery energy for connected household loads. Backup performance depends on system setup and the loads selected.
Day-to-Night Energy Shifting
Charge from solar when generation is available, then draw from stored energy in the evening. The hybrid inverter coordinates PV, battery and grid power for residential use.
Expandable Home Storage
Designed for residential storage that can grow with project needs. The product specifications state support for parallel connection of up to 16 storage batteries.
| SYSTEM SPECIFICATIONS | |
| System Type | Wall-Mounted Energy Storage System |
| Inverter Type | 10kW Hybrid Inverter |
| Rated Output Power | 10kW |
| AC OUTPUT SPECIFICATIONS | |
| AC Output Voltage | 210–230VAC |
| Output Frequency | 50Hz |
| SOLAR / MPPT SPECIFICATIONS | |
| PV MPPT Voltage Range | 120–450VDC |
| BATTERY SPECIFICATIONS | |
| Battery Type | LiFePO4 |
| Nominal Voltage | 51.2V |
| Nominal Capacity | 200Ah |
| Battery Energy | 10.24kWh |
| Maximum Charge Current | 100A |
| Maximum Discharge Current | 100A |
| Charge Cut-Off Voltage | 58.4V |
| Discharge Cut-Off Voltage | 40V |
| Cycle Life | 6000 Cycles |
| Parallel Expansion | Up to 16 Batteries |
| BMS & MONITORING | |
| Battery Management | Built-In BMS |
| Monitoring | Wi-Fi Module |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | 0°C to +45°C |
| WARRANTY & CUSTOMIZATION | |
| Warranty | 5 Years |
| Customization | Specifications According to Customer Requirements |
