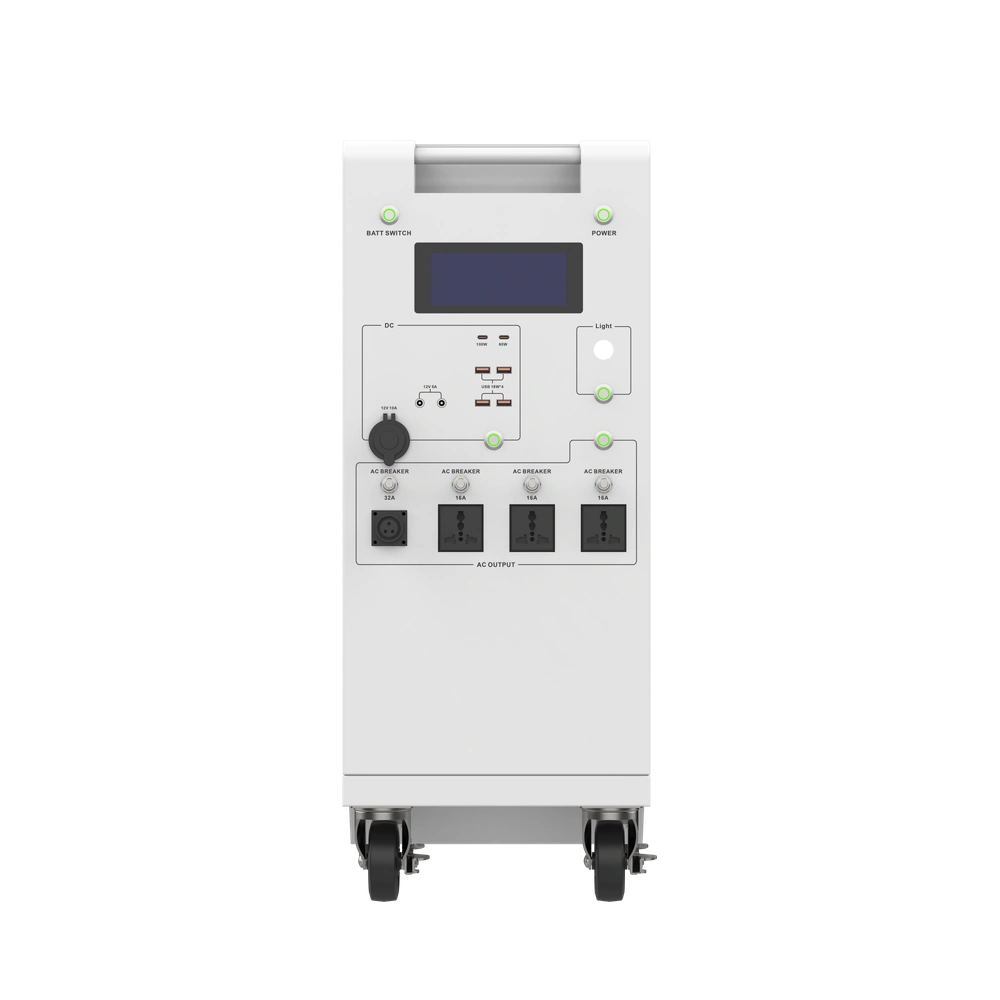

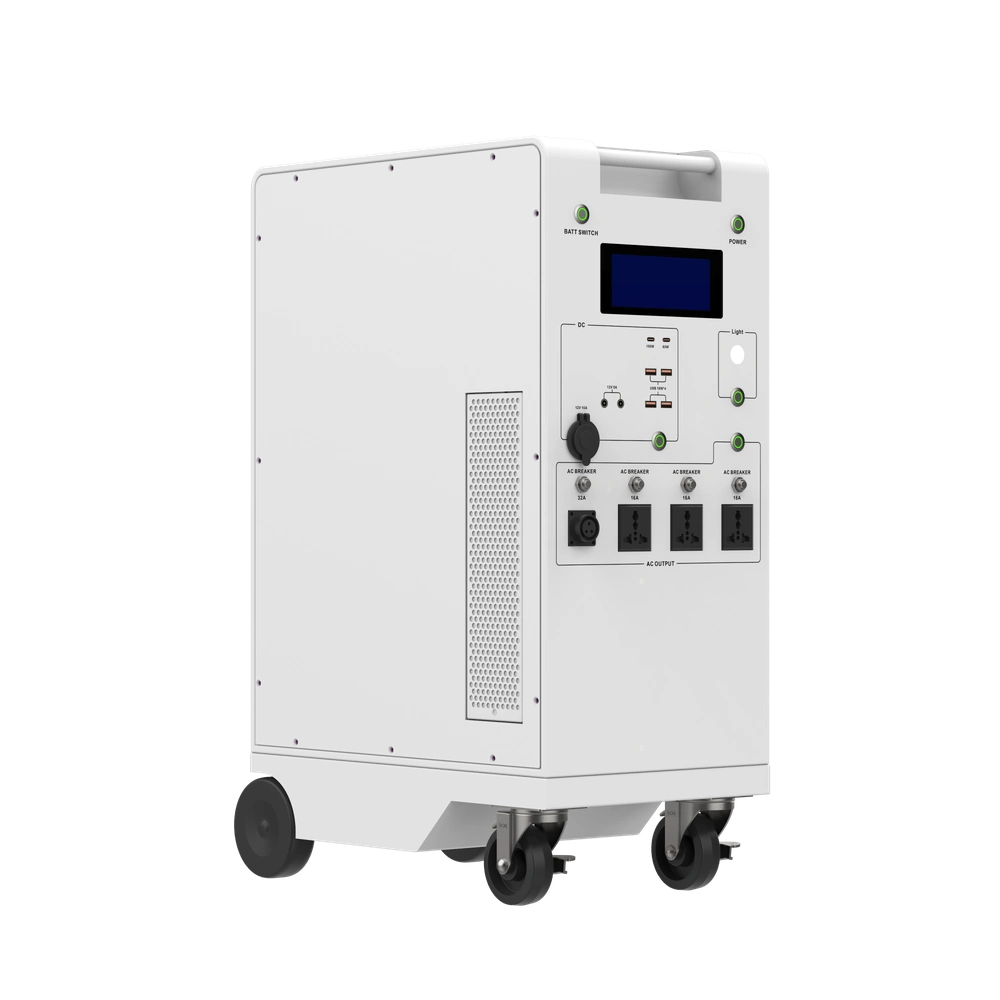

All-in-One ESS TG-MA Series Mobile Solar Energy Storage

Advanced energy storage product engineered for reliable power applications, scalable supply, and global B2B project requirements.

Model:: All-in-One ESS TG-MA Series
Brand:: VoltCrave

Talk to Our Energy Storage Team

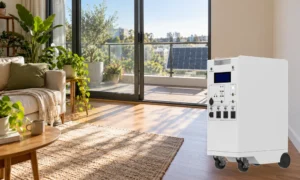

Balcony Solar Storage for Everyday Home Use

Connect compatible residential PV panels to the built-in MPPT charger and store daytime solar energy for later household use. The TG-MA range combines a 5–6.2 kW inverter with 5.12–14.34 kWh of LiFePO4 storage, depending on configuration.

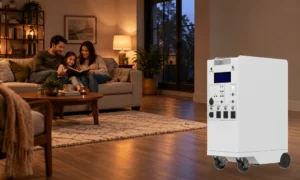

Fast Backup for Essential Household Loads

When configured for backup, the listed 10 ms UPS-mode transfer helps support selected household circuits during a grid interruption. Pure sine-wave AC output is suited to compatible home electronics and appliances; runtime depends on the connected load and battery configuration.

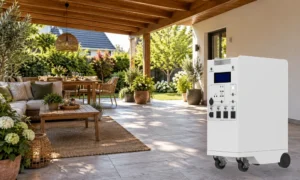

Flexible Power for Courtyards & Temporary Setups

The integrated handle and wheels make it easier to reposition the system around the home for temporary power needs in a courtyard or other sheltered area. Keep the unit in a dry, protected location and check the selected model’s output and connector limits.

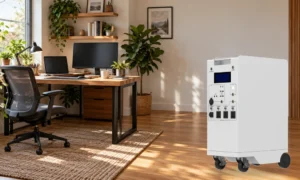

Multi-Output Power for Home Electronics

Use the AC, DC, USB, and USB-C outputs to power or charge compatible devices such as a laptop, router, phone, lighting, and small appliances. The product page lists USB-C outputs up to 100 W and 60 W; check port ratings and device requirements before use.

PARAMETER	TG-MA-5K5LV	TG-MA-6K10LV	TG-MA-6K14LV
BASIC SPECIFICATIONS
Product Series	TG-MA Series
Product Type	Mobile All-in-One Solar Energy Storage System
System Configuration	Integrated Inverter, LiFePO4 Battery and MPPT Solar Charger
Rated Power	5000VA / 5000W	6200VA / 6200W	6200VA / 6200W
AC INPUT SPECIFICATIONS
Nominal Input Voltage	230VAC
Selectable Input Voltage Range (PC Mode)	170–280VAC
Selectable Input Voltage Range (Appliance Mode)	90–280VAC
Nominal Input Frequency	50/60Hz (Auto Sensing)
AC OUTPUT SPECIFICATIONS
Nominal Output Voltage	230VAC (Settable)
Rated Output Power	5000W	6200W	6200W
Surge Power	10000VA	12400VA	12400VA
Output Frequency	50/60Hz
Output Waveform	Pure Sine Wave
Peak Efficiency (PV to Inverter)	96%
Peak Efficiency (Battery to Inverter)	93%
Transfer Time (UPS Mode)	10ms
Transfer Time (Appliance Mode)	20ms
Overload Protection	60s @ 105%–110% Load; 10s @ 110%–140% Load; 5s @ ≥140% Load
BATTERY SPECIFICATIONS
Battery Chemistry	Lithium Iron Phosphate (LiFePO4)
Nominal Battery Voltage	51.2VDC
Rated Battery Capacity	100Ah	206Ah	280Ah
Battery Voltage Range	42–58.4VDC
SOLAR & AC CHARGING SPECIFICATIONS
Solar Charging Method	Maximum Power Point Tracking (MPPT)
Maximum PV Array Power	5500W	6500W	6500W
Maximum PV Open-Circuit Voltage	500VDC
MPPT Operating Voltage Range	60–450VDC
Maximum PV Input Current	27A
Maximum Solar Charging Current	100A	120A	120A
Maximum AC Charging Current	30A / 100A (Source-Listed Options)
Maximum Combined Charging Current (PV + AC)	100A	120A	120A
PHYSICAL SPECIFICATIONS
Product Dimensions (D × W × H)	450 × 280 × 705mm	600 × 340 × 705mm	700 × 300 × 1000mm
Packing Dimensions (D × W × H)	535 × 365 × 765mm	690 × 425 × 755mm	790 × 390 × 1160mm
Net Weight	60kg	94kg	124.5kg
Mobility Design	Wheels and Carry Handle
COMMUNICATION & CONTROL
Communication Interfaces	RS232 / RS485 (BMS) / Bluetooth / Wi-Fi
Lithium Battery Activation	Supported via PV or Utility Power
Parallel Operation	Supported
PV Connection Type	MC4
AC Input Connection Type	IEC C14 Inlet / Circular Connector
Battery Expansion Connection	Circular Connector (Optional)
AC & DC OUTPUT INTERFACES
AC Output Connector	1 × 30A Circular Connector
AC Standard Outlets	3 × Standard Sockets (10A CN / 13A UK / 16A EU Options)
USB Output	4 × 18W USB Outputs
USB-C Output	1 × 100W + 1 × 60W
DC Output	1 × 12V / 10A + 2 × 12V / 5A
ENVIRONMENTAL SPECIFICATIONS
Charging Temperature	0°C to 50°C
Discharging Temperature	-10°C to 50°C
Storage Temperature	-20°C to 25°C
Relative Humidity	5%–95% RH (Non-Condensing)
